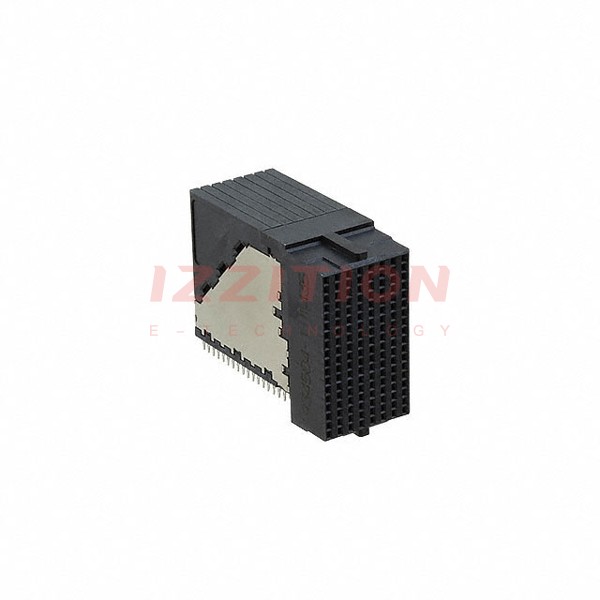

| Part Number | 1934504-1 | 1934544-1 | 1934505-1 | 1934304-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Connector Usage | - | - | - | - |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets | Header, Male Pins | Header, Male Pins |
| Connector Style | High Speed | High Speed | High Speed | High Speed |
| Number of Positions | 144 | 120 | 144 | 96 |
| Number of Positions Loaded | All | All | All | All |
| Pitch | 0.075" (1.90mm) | 0.075" (1.90mm) | 0.075" (1.90mm) | 0.075" (1.90mm) |
| Number of Rows | 18 | 12 | 18 | 12 |
| Number of Columns | 8 | 10 | 8 | 8 |
| Mounting Type | Board Edge, Through Hole, Right Angle | Through Hole | Through Hole | Through Hole |
| Termination | Press-Fit | Press-Fit | Press-Fit | Press-Fit |
| Contact Layout, Typical | - | - | - | - |
| Features | - | - | - | - |
| Contact Finish | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | 20.0µin (0.51µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Color | Black | Black | Black | Black |
