Please send RFQ , we will respond immediately.

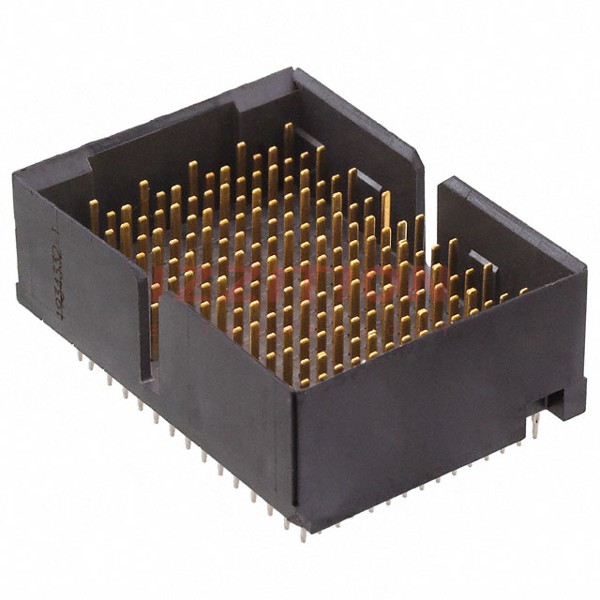

| Part Number | 1934332-1 | 1934342-1 | 1934338-1 | 1934339-1 | 1934335-1 | 1934932-1 | 1934302-1 | 1934312-1 | 1934331-1 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Connector Usage | - | - | - | - | - | - | - | - | - |
| Connector Type | Header, Male Pins | Header, Male Pins | Header, Male Pins | Header, Male Pins | Header, Male Pins | Receptacle, Female Sockets | Plug, Male Pins | Header, Male Pins | Header, Male Pins |
| Connector Style | High Speed | High Speed | - | High Speed | - | - | High Speed | High Speed | High Speed |
| Number of Positions | 240 | 90 | 54 | 90 | 54 | 150 | 72 | 120 | 240 |
| Number of Positions Loaded | All | All | All | All | All | All | All | All | All |
| Pitch | 0.075" (1.90mm) | 0.075" (1.90mm) | 0.075" (1.90mm) | 0.075" (1.90mm) | 0.075" (1.90mm) | 0.075" (1.90mm) | 0.075" (1.90mm) | 0.075" (1.90mm) | 0.075" (1.90mm) |
| Number of Rows | 15 | 9 | 9 | 9 | 9 | 15 | 9 | 12 | 15 |
| Number of Columns | 16 | 10 | 6 | 10 | 6 | 10 | 8 | 10 | 16 |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole, Right Angle | Through Hole | Through Hole | Through Hole |
| Termination | Press-Fit | Press-Fit | Press-Fit | Press-Fit | Press-Fit | Press-Fit | Press-Fit | Press-Fit | Press-Fit |
| Contact Layout, Typical | - | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - | - |
| Contact Finish | Gold | Gold | Gold | Gold | Gold | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Color | Black | Black | Black | Black | Black | Black | Black | Black | Black |
