Please send RFQ , we will respond immediately.

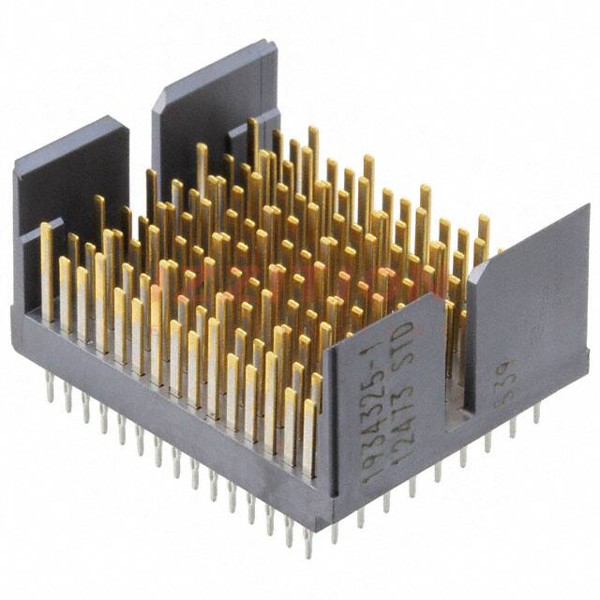

| Part Number | 1934325-1 | 1934335-1 | 1934326-1 | 1934355-1 | 1934225-1 | 1934305-1 | 1934315-1 |
|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Connector Usage | - | - | - | Coplanar, Daughtercard | Coplanar, Daughtercard | Backplane | - |
| Connector Type | Header, Male Pins | Header, Male Pins | Header, Male Pins | Header, Male Pins | Receptacle, Female Sockets | Header, Male Pins | Header, Male Pins |
| Connector Style | High Speed | - | - | High Speed | High Speed | High Speed | High Speed |
| Number of Positions | 150 | 54 | 150 | 144 | 192 | 96 | 192 |
| Number of Positions Loaded | All | All | All | All | All | All | All |
| Pitch | 0.075" (1.90mm) | 0.075" (1.90mm) | 0.075" (1.90mm) | 0.075" (1.90mm) | 0.075" (1.90mm) | 0.075" (1.90mm) | 0.075" (1.90mm) |
| Number of Rows | 15 | 9 | 15 | 9 | 12 | 12 | 12 |
| Number of Columns | 10 | 6 | 10 | 16 | 16 | 8 | 16 |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole, Right Angle | Board Edge, Through Hole, Right Angle | Through Hole | Through Hole |
| Termination | Press-Fit | Press-Fit | Press-Fit | Press-Fit | Press-Fit | Press-Fit | Press-Fit |
| Contact Layout, Typical | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - |
| Contact Finish | Gold | Gold | Gold | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Color | Black | Black | Black | Black | Black | Black | Black |
