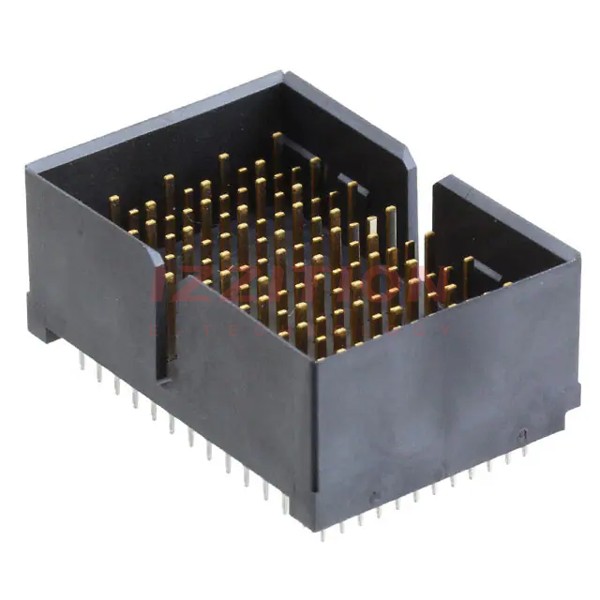

| Part Number | 1934290-1 | 1934299-1 | 1934220-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Connector Usage | - | Backplane | Coplanar, Daughtercard |
| Connector Type | Header, Male Pins | Header, Male Pins | Receptacle, Female Sockets |
| Connector Style | - | High Speed | High Speed |
| Number of Positions | 168 | 72 | 150 |
| Number of Positions Loaded | All | All | All |
| Pitch | 0.075" (1.90mm) | 0.075" (1.90mm) | 0.075" (1.90mm) |
| Number of Rows | 12 | 9 | 15 |
| Number of Columns | 14 | 8 | 10 |
| Mounting Type | Through Hole | Through Hole | Board Edge, Through Hole, Right Angle |
| Termination | Press-Fit | Press-Fit | Press-Fit |
| Contact Layout, Typical | - | - | - |
| Features | - | - | - |
| Contact Finish | Gold | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Color | Black | Black | Black |
