1934272-1
  • Share:

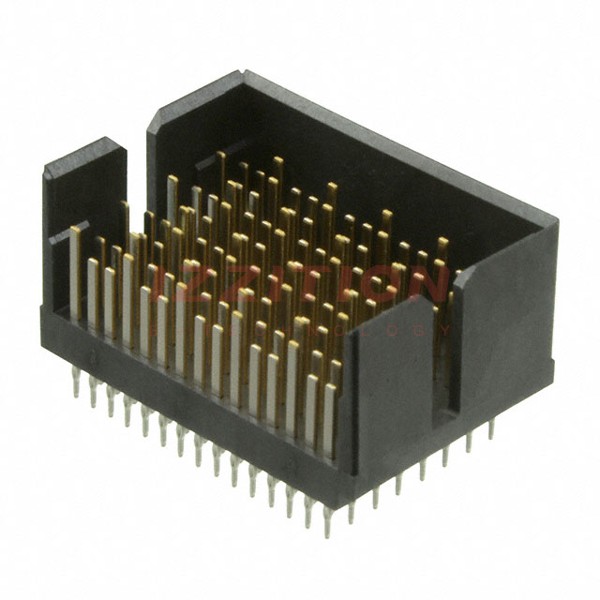

TE Connectivity AMP Connectors 1934272-1

Manufacturer No:
1934272-1
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tube
Datasheet:
1934272-1 Datasheet
ECAD Model:
-
Description:
CONN HEADER HD 120POS PCB
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Usage:-
Connector Type:Header, Male Pins
Connector Style:High Speed
Number of Positions:120
Number of Positions Loaded:All
Pitch:0.075" (1.90mm)
Number of Rows:15
Number of Columns:8
Mounting Type:Through Hole
Termination:Press-Fit
Contact Layout, Typical:-
Features:-
Contact Finish:Gold
Contact Finish Thickness:30.0µin (0.76µm)
Color:Black
0 Remaining View Similar

In Stock

$22.60
14

Please send RFQ , we will respond immediately.

Similar Products

Part Number 1934272-1 1934273-1   1934275-1   1934276-1   1934222-1   1934271-1
Manufacturer TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors
Product Status Active Active Active Active Active Active
Connector Usage - - Coplanar, Daughtercard - Coplanar, Daughtercard -
Connector Type Header, Male Pins Header, Male Pins Receptacle, Female Sockets Receptacle, Female Sockets Receptacle, Female Sockets Header, Male Pins
Connector Style High Speed High Speed - - High Speed High Speed
Number of Positions 120 120 168 210 96 120
Number of Positions Loaded All All All All All All
Pitch 0.075" (1.90mm) 0.075" (1.90mm) 0.075" (1.90mm) 0.075" (1.90mm) 0.075" (1.90mm) 0.075" (1.90mm)
Number of Rows 15 15 12 15 12 15
Number of Columns 8 8 14 14 8 8
Mounting Type Through Hole Through Hole Board Edge, Through Hole, Right Angle Board Edge, Through Hole, Right Angle Board Edge, Through Hole, Right Angle Through Hole
Termination Press-Fit Press-Fit Press-Fit Press-Fit Press-Fit Press-Fit
Contact Layout, Typical - - - - - -
Features - - - - - -
Contact Finish Gold Gold Gold Gold Gold Gold
Contact Finish Thickness 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm)
Color Black Black Black Black Black Black
