Please send RFQ , we will respond immediately.

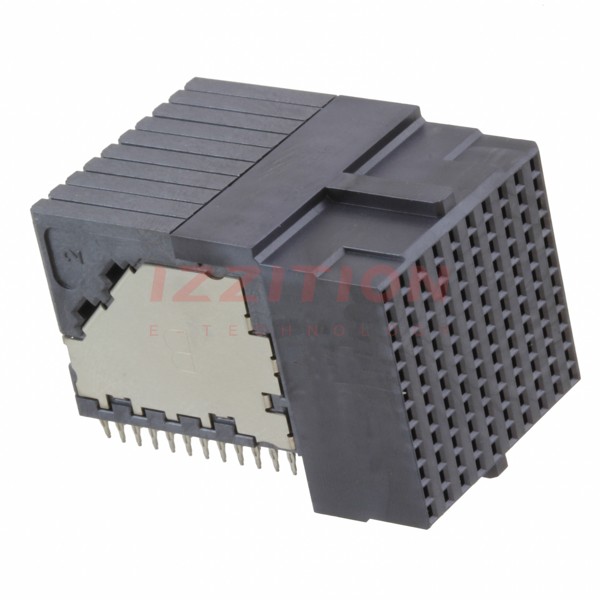

| Part Number | 1934224-1 | 1934225-1 | 1934226-1 | 1934228-1 | 1934229-1 | 1934227-1 | 1934220-1 | 1934221-1 | 1934222-1 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Connector Usage | Coplanar, Daughtercard | Coplanar, Daughtercard | Backplane | Coplanar, Daughtercard | Coplanar, Daughtercard | Coplanar, Daughtercard | Coplanar, Daughtercard | Coplanar, Daughtercard | Coplanar, Daughtercard |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Connector Style | High Speed | High Speed | High Speed | High Speed | High Speed | - | High Speed | High Speed | High Speed |
| Number of Positions | 80 | 192 | 72 | 90 | 144 | 54 | 150 | 240 | 96 |
| Number of Positions Loaded | All | All | All | All | All | All | All | All | All |
| Pitch | 0.075" (1.90mm) | 0.075" (1.90mm) | 0.075" (1.90mm) | 0.075" (1.90mm) | 0.075" (1.90mm) | 0.075" (1.90mm) | 0.075" (1.90mm) | 0.075" (1.90mm) | 0.075" (1.90mm) |
| Number of Rows | 12 | 12 | 9 | 9 | 9 | 9 | 15 | 15 | 12 |
| Number of Columns | 10 | 16 | 8 | 10 | 16 | 6 | 10 | 16 | 8 |
| Mounting Type | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle | Through Hole | Board Edge, Through Hole, Right Angle |
| Termination | Press-Fit | Press-Fit | Press-Fit | Press-Fit | Press-Fit | Press-Fit | Press-Fit | Press-Fit | Press-Fit |
| Contact Layout, Typical | - | - | - | - | - | - | - | 80 Differential Pairs | - |
| Features | - | - | - | Shielded | - | - | - | - | - |
| Contact Finish | Gold | Gold | Gold | Gold | Gold | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | - | 30.0µin (0.76µm) |
| Color | Black | Black | Black | Black | Black | Black | Black | Black | Black |
