Please send RFQ , we will respond immediately.

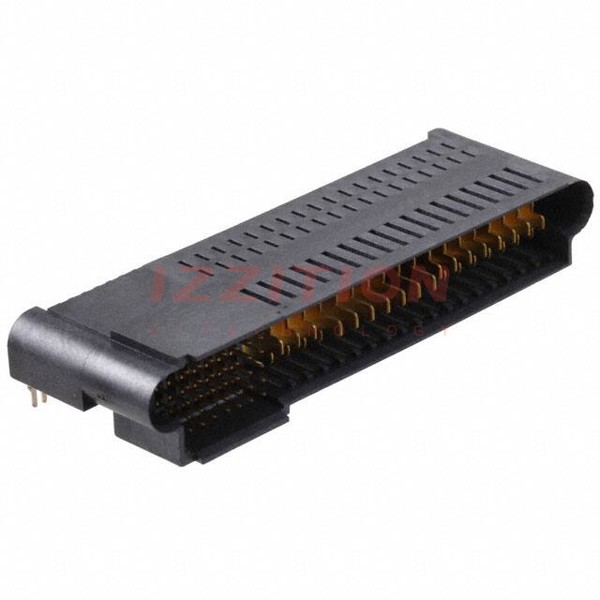

| Part Number | 1926734-3 | 1926736-3 | 1926734-4 | 1926734-2 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active | Obsolete | Active |
| Connector Usage | - | - | - | - |
| Connector Type | Plug, Male Pins and Blades | Header, Male Pins and Blades | Plug, Male Pins and Blades | Plug, Male Pins and Blades |
| Connector Style | - | - | - | - |
| Number of Positions | 53 | 35 | 35 | 35 |
| Number of Positions Loaded | All | All | All | All |
| Pitch | - | 0.079" (2.00mm) | - | - |
| Number of Rows | 5 | - | 5 | 5 |
| Number of Columns | - | - | - | - |
| Mounting Type | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle |
| Termination | Press-Fit | Press-Fit | Press-Fit | Press-Fit |
| Contact Layout, Typical | 35 Signal, 18 Power | 25 Signal, 10 Power | 25 Signal, 10 Power | 25 Signal, 10 Power |
| Features | Board Lock, Mating Guide | Mating Guide | Board Lock, Mating Guide | Board Lock, Mating Guide |
| Contact Finish | Gold or Gold-Palladium | Gold | Gold or Gold-Palladium | Gold or Gold-Palladium |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Color | Black | Black | Black | Black |
