1903813-1
  • Share:

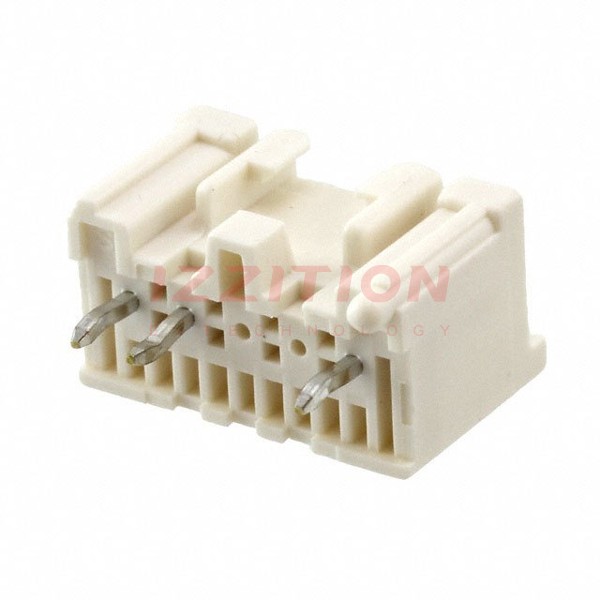

TE Connectivity AMP Connectors 1903813-1

Manufacturer No:
1903813-1
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
1903813-1 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 5POS 2.5MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.098" (2.50mm)
Number of Positions:5
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:3
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Kinked Pin, Solder
Fastening Type:Latch Holder
Contact Length - Mating:0.185" (4.70mm)
Contact Length - Post:0.126" (3.20mm)
Overall Contact Length:0.410" (10.41mm)
Insulation Height:0.386" (9.80mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Polyamide (PA66), Nylon 6/6, Glass Filled
Features:Board Guide
Operating Temperature:-30°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-2
Insulation Color:Natural
Current Rating (Amps):3A
Voltage Rating:50V
0 Remaining View Similar

In Stock

$0.48
882

Please send RFQ , we will respond immediately.
