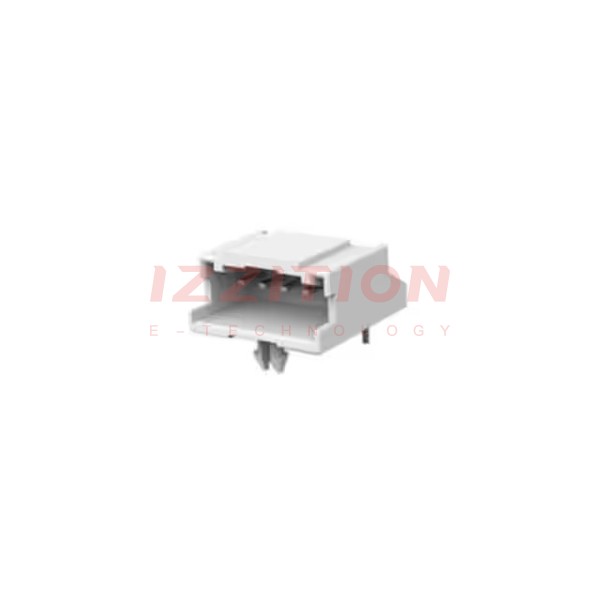

TE Connectivity AMP Connectors 1903535-1

Manufacturer No:
1903535-1
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tube
Datasheet:
1903535-1 Datasheet
ECAD Model:
-
Description:
CONN HEADER R/A 5POS 2.5MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Tab
Pitch - Mating:0.098" (2.50mm)
Number of Positions:5
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:-
Contact Length - Post:0.110" (2.79mm)
Overall Contact Length:-
Insulation Height:0.285" (7.25mm)
Contact Shape:Rectangular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Polyamide (PA66), Nylon 6/6, Glass Filled
Features:Board Lock
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Natural
Current Rating (Amps):-
Voltage Rating:-
0 Remaining View Similar

In Stock

$0.93
374

Please send RFQ , we will respond immediately.
