Please send RFQ , we will respond immediately.

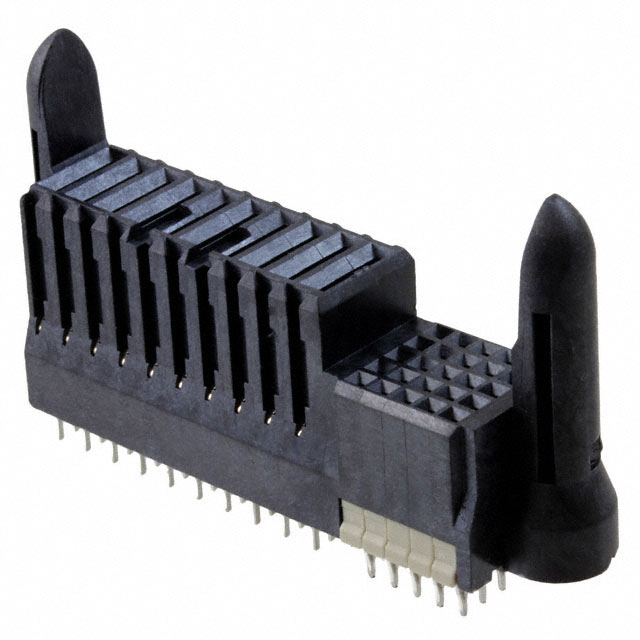

| Part Number | 1892787-6 | 1892787-9 | 1892787-3 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Connector Usage | - | - | - |
| Connector Type | Receptacle, Female Sockets and Blade Sockets | Receptacle, Female Sockets and Blade Sockets | Receptacle, Female Sockets and Blade Sockets |
| Connector Style | - | - | - |
| Number of Positions | 35 | 28 | - |
| Number of Positions Loaded | All | All | - |
| Pitch | - | - | - |
| Number of Rows | - | - | - |
| Number of Columns | - | - | - |
| Mounting Type | Through Hole | Through Hole | - |
| Termination | Press-Fit, Solder | Press-Fit, Solder | - |
| Contact Layout, Typical | 25 Signal, 10 Power | 20 Signal, 8 Power | - |
| Features | Guide Pin | Guide Pin | - |
| Contact Finish | Gold or Gold-Palladium | Gold or Gold-Palladium | - |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | - |
| Color | Black | Black | Black |
