TE Connectivity AMP Connectors-1888208-5 - Rectangular Connectors - Headers, Male Pins Product Specifications and Latest Quotes

Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.100" (2.54mm)
Number of Positions:	24
Number of Rows:	2
Row Spacing - Mating:	0.100" (2.54mm)
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Kinked Pin, Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.240" (6.10mm)
Contact Length - Post:	0.120" (3.05mm)
Overall Contact Length:	-
Insulation Height:	0.388" (9.86mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold or Gold-Palladium
Contact Finish Thickness - Mating:	Flash
Contact Finish - Post:	Tin
Contact Material:	Brass
Insulation Material:	Polyphthalamide (PPA), Glass Filled
Features:	Keying Slot
Operating Temperature:	-65°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	1A per Contact
Voltage Rating:	250VAC

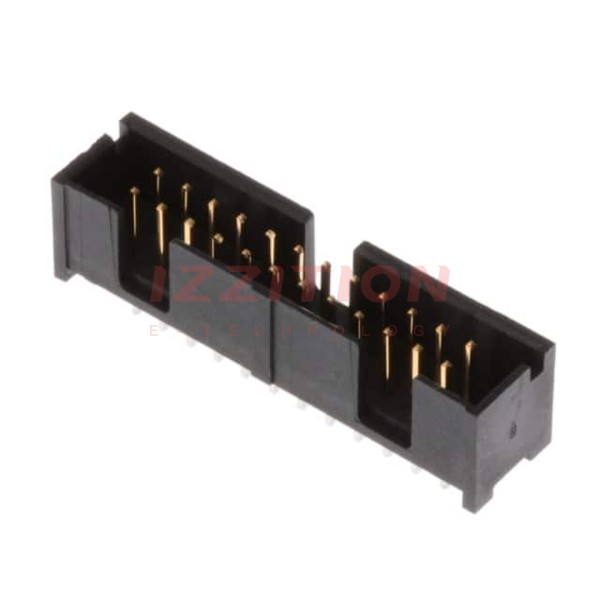

TE Connectivity AMP Connectors 1888208-5
