1877847-2
  • Share:

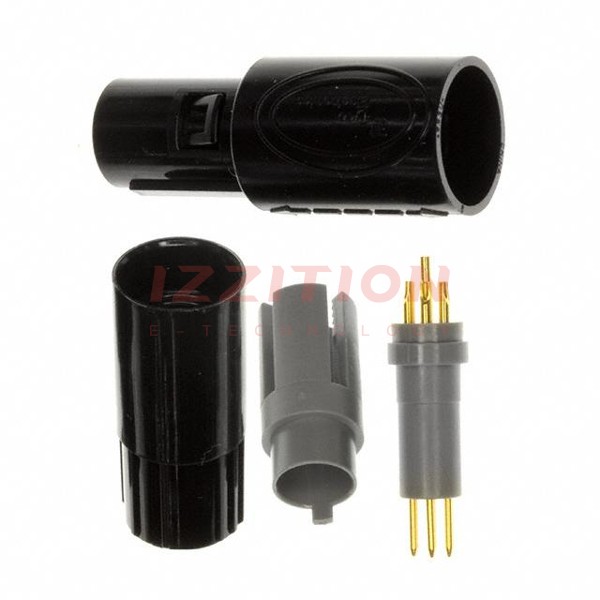

TE Connectivity AMP Connectors 1877847-2

Manufacturer No:
1877847-2
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
1877847-2 Datasheet
ECAD Model:
-
Description:
CONN PLUG MALE 7P GOLD SLDR CUP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Plug, Male Pins
Number of Positions:7
Shell Size - Insert:-
Shell Size, MIL:-
Mounting Type:Free Hanging (In-Line)
Mounting Feature:-
Termination:Solder Cup
Fastening Type:Latch Lock
Orientation:
Primary Material:Plastic
Shell Material:Thermoplastic
Shell Finish:-
Contact Finish - Mating:Gold
Color:Black
Ingress Protection:-
Material Flammability Rating:-
Features:-
Shielding:-
Current Rating (Amps):5A
Voltage Rating:300VAC
Cable Opening:0.157" ~ 0.205" (4.00mm ~ 5.20mm)
Operating Temperature:-50°C ~ 170°C
0 Remaining View Similar

In Stock

-
118

Please send RFQ , we will respond immediately.

Similar Products

Part Number 1877847-2 1877847-3   1877847-4   1877847-5   1877847-6   1877847-7   1877847-8   1877847-9   1877848-2   1877849-2   1877845-2   1877846-2   1877847-1
Manufacturer TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors
Product Status Active Active Active Active Active Active Active Active Active Active Obsolete Active Active
Connector Type Plug, Male Pins Plug, Male Pins Plug, Male Pins Plug, Male Pins Plug, Male Pins Plug, Male Pins Plug, Male Pins Plug, Male Pins Plug, Male Pins Plug, Male Pins Plug, Male Pins Plug, Male Pins Plug, Male Pins
Number of Positions 7 7 7 7 7 7 7 7 10 5 5 6 7
Shell Size - Insert - - - - - - - - - - - - -
Shell Size, MIL - - - - - - - - - - - - -
Mounting Type Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line)
Mounting Feature - - - - - - - - - - - - -
Termination Solder Cup Solder Cup Solder Cup Solder Cup Solder Cup Solder Cup Solder Cup Solder Cup Solder Cup Solder Cup Solder Cup Solder Cup Solder Cup
Fastening Type Latch Lock Latch Lock Latch Lock Latch Lock Latch Lock Latch Lock Latch Lock Latch Lock Latch Lock Latch Lock Latch Lock Latch Lock Latch Lock
Orientation 80° 80° 80° 80°
Primary Material Plastic Plastic Plastic Plastic Plastic Plastic Plastic Plastic Plastic Plastic Plastic Plastic Plastic
Shell Material Thermoplastic Thermoplastic Thermoplastic Thermoplastic Thermoplastic Thermoplastic Thermoplastic Thermoplastic Thermoplastic Thermoplastic Thermoplastic Thermoplastic Thermoplastic
Shell Finish - - - - - - - - - - - - -
Contact Finish - Mating Gold Gold Gold Gold Gold Gold Gold Gold Gold Gold Gold Gold Gold
Color Black Black Black Black Black Gray Gray Gray Black Black Black Black Black
Ingress Protection - - - - - - - - - - - - -
Material Flammability Rating - - - - - - - - - - - - -
Features - - - - - - - - - - - - -
Shielding - - - - - - - - - - - - -
Current Rating (Amps) 5A 5A 5A 5A 5A 5A 5A 5A 3A 7A 7A 6A 5A
Voltage Rating 300VAC 300VAC 300VAC 300VAC 300VAC 300VAC 300VAC 300VAC 300VAC 300VAC 300VAC 300VAC 300VAC
Cable Opening 0.157" ~ 0.205" (4.00mm ~ 5.20mm) 0.106" ~ 0.154" (2.70mm ~ 3.90mm) 0.209" ~ 0.256" (5.30mm ~ 6.50mm) 0.157" ~ 0.205" (4.00mm ~ 5.20mm) 0.106" ~ 0.154" (2.70mm ~ 3.90mm) 0.209" ~ 0.256" (5.30mm ~ 6.50mm) 0.157" ~ 0.205" (4.00mm ~ 5.20mm) 0.106" ~ 0.154" (2.70mm ~ 3.90mm) 0.157" ~ 0.205" (4.00mm ~ 5.20mm) - 0.157" ~ 0.205" (4.00mm ~ 5.20mm) 0.157" ~ 0.205" (4.00mm ~ 5.20mm) 0.209" ~ 0.256" (5.30mm ~ 6.50mm)
Operating Temperature -50°C ~ 170°C -50°C ~ 170°C -50°C ~ 170°C -50°C ~ 170°C -50°C ~ 170°C -50°C ~ 170°C -50°C ~ 170°C -50°C ~ 170°C -50°C ~ 170°C -50°C ~ 170°C -50°C ~ 170°C -50°C ~ 170°C -50°C ~ 170°C
