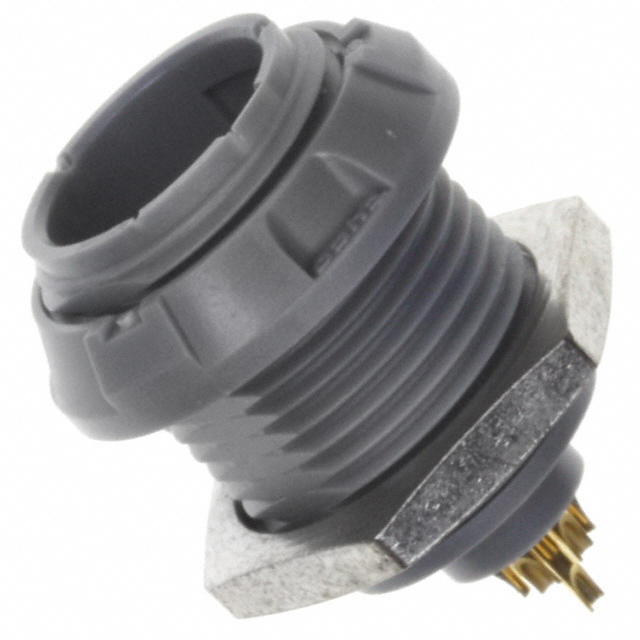

| Part Number | 1877068-1 | 1877068-3 | 1877069-1 | 1877068-2 | 1877068-4 | 1877066-1 | 1877067-1 |
|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Obsolete |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Number of Positions | 7 | 7 | 10 | 7 | 7 | 5 | 6 |
| Shell Size - Insert | - | - | - | - | - | - | - |
| Shell Size, MIL | - | - | - | - | - | - | - |
| Mounting Type | Panel Mount | Panel Mount | Panel Mount | Panel Mount | Panel Mount | Panel Mount | Panel Mount |
| Mounting Feature | Bulkhead - Front or Rear Side Nut | Bulkhead - Front or Rear Side Nut | Bulkhead - Front or Rear Side Nut | Bulkhead - Front or Rear Side Nut | Bulkhead - Front or Rear Side Nut | Bulkhead - Front or Rear Side Nut | Bulkhead - Front or Rear Side Nut |
| Termination | Solder Cup | Solder Cup | Solder Cup | Solder Cup | Solder Cup | Solder Cup | Solder Cup |
| Fastening Type | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock |
| Orientation | 0° | 80° | 0° | 0° | 80° | 0° | 0° |
| Primary Material | Plastic | Plastic | Plastic | Plastic | Plastic | Plastic | Plastic |
| Shell Material | Thermoplastic | Thermoplastic | Thermoplastic | Thermoplastic | Thermoplastic | Thermoplastic | Thermoplastic |
| Shell Finish | - | - | - | - | - | - | - |
| Contact Finish - Mating | Gold | Gold | Gold | Gold | Gold | Gold | Gold |
| Color | Gray | Gray | Gray | Black | Black | Gray | Gray |
| Ingress Protection | IP50 - Dust Protected | IP50 - Dust Protected | IP50 - Dust Protected | IP50 - Dust Protected | IP50 - Dust Protected | IP50 - Dust Protected | IP50 - Dust Protected |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Features | - | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| Current Rating (Amps) | 5A | 5A | 3A | 5A | 5A | 7A | 6A |
| Voltage Rating | 300VAC | 300VAC | 300VAC | 300VAC | 300VAC | 300VAC | 300VAC |
| Cable Opening | - | - | - | - | - | - | - |
| Operating Temperature | -50°C ~ 170°C | -50°C ~ 170°C | -50°C ~ 170°C | -50°C ~ 170°C | -50°C ~ 170°C | -50°C ~ 170°C | -50°C ~ 170°C |
