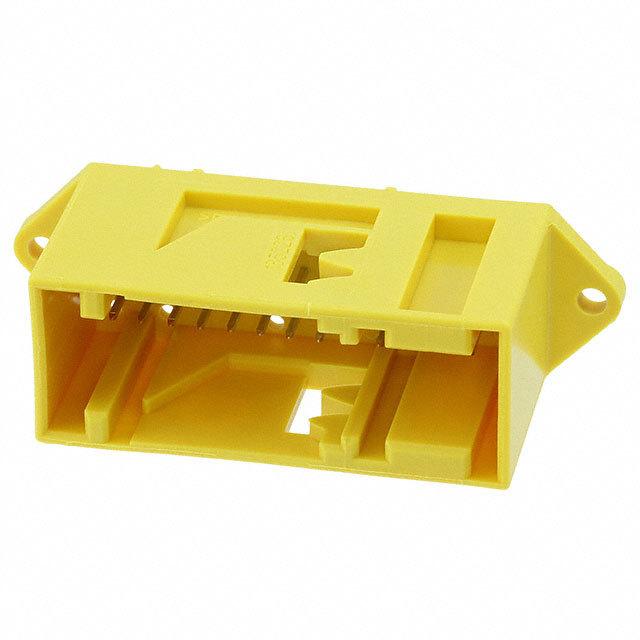

TE Connectivity AMP Connectors 185226-1

Manufacturer No:
185226-1
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
185226-1 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 26POS 2.54MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:26
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Friction Lock
Contact Length - Mating:0.264" (6.70mm)
Contact Length - Post:0.128" (3.25mm)
Overall Contact Length:-
Insulation Height:0.823" (20.90mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:-
Insulation Material:Polybutylene Terephthalate (PBT), Glass Filled
Features:Board Guide, Mounting Flange
Operating Temperature:-40°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Yellow
Current Rating (Amps):-
Voltage Rating:-
0 Remaining View Similar

In Stock

$3.77
42

Please send RFQ , we will respond immediately.
