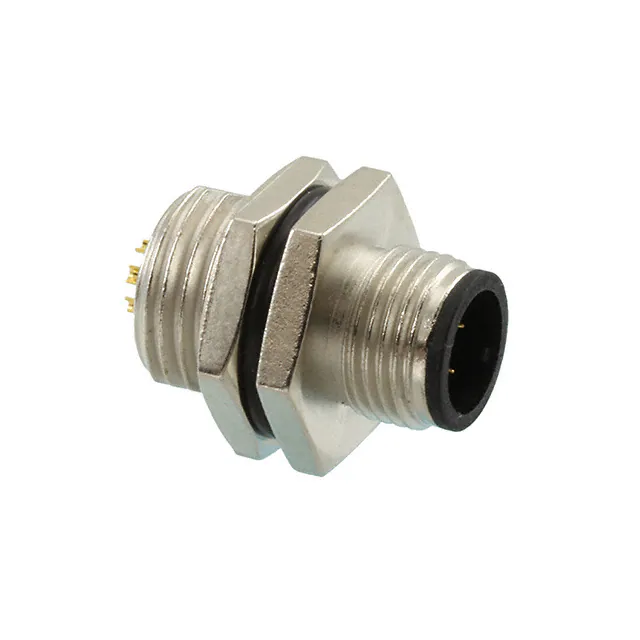

| Part Number | 1838893-4 | 1838891-4 | 1838892-4 | 1838893-1 | 1838893-2 | 1838893-3 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active |
| Connector Type | Plug, Male Pins | Receptacle, Female Sockets | Receptacle, Female Sockets | Plug, Male Pins | Plug, Male Pins | Plug, Male Pins |
| Number of Positions | 8 | 8 | 8 | 3 | 4 | 5 |
| Shell Size - Insert | M12-8 | M12-8 | M12-8 | M12-3 | M12-4 | M12-5 |
| Shell Size, MIL | - | - | - | - | - | - |
| Mounting Type | Panel Mount | Panel Mount | Panel Mount, Through Hole | Panel Mount | Panel Mount | Panel Mount |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut | Bulkhead | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut |
| Termination | Solder Cup | Solder Cup | Solder | Solder Cup | Solder Cup | Solder Cup |
| Fastening Type | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded |
| Orientation | Keyed | Keyed | Keyed | Keyed | Keyed | Keyed |
| Primary Material | Metal | Metal | Metal | Metal | Metal | Metal |
| Shell Material | Zinc Die Cast | Zinc Die Cast | Zinc Die Cast | Zinc Die Cast | Zinc Die Cast | Zinc Die Cast |
| Shell Finish | Nickel | Nickel | Nickel | Nickel | Nickel | Nickel |
| Contact Finish - Mating | Gold | Gold | Gold | Gold | Gold | Gold |
| Color | Silver | Silver | Silver | Silver | Silver | Silver |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | - | - | - | - | - | - |
| Features | - | - | - | - | - | - |
| Shielding | - | - | - | - | - | - |
| Current Rating (Amps) | 2A | 2A | 2A | 5A | 5A | 5A |
| Voltage Rating | 30VAC/DC | 30VAC/DC | 30VAC/DC | 250VAC/DC | 250VAC/DC | 60VAC/DC |
| Cable Opening | - | - | - | - | - | - |
| Operating Temperature | -25°C ~ 90°C | -25°C ~ 90°C | -25°C ~ 90°C | -25°C ~ 90°C | -25°C ~ 90°C | -25°C ~ 90°C |
