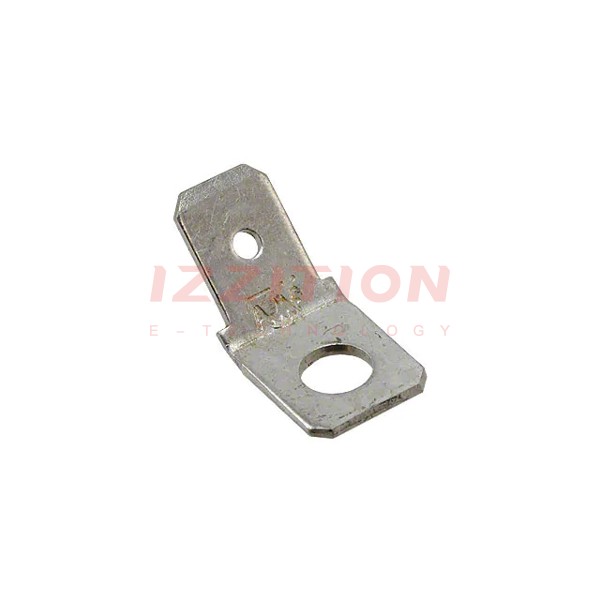

| Part Number | 181949-2 | 181948-2 | 181949-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Terminal Type | Angled - 45° | Angled - 45° | Angled - 45° |
| Gender | Male | Male | Male |
| Tab Width | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) |
| Tab Length | 0.307" (7.80mm) | 0.315" (8.00mm) | 0.307" (7.80mm) |
| Length - Overall | - | - | - |
| Termination | Screw, Rivet, Stud | Screw, Rivet, Stud | Screw, Rivet, Stud |
| Wire Gauge | - | - | - |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Board, Chassis | Board, Chassis | Board, Chassis |
| Features | - | - | - |
| Color | - | - | - |
| Contact Material | Brass | Brass | Brass |
| Contact Finish | Tin | Tin | - |
