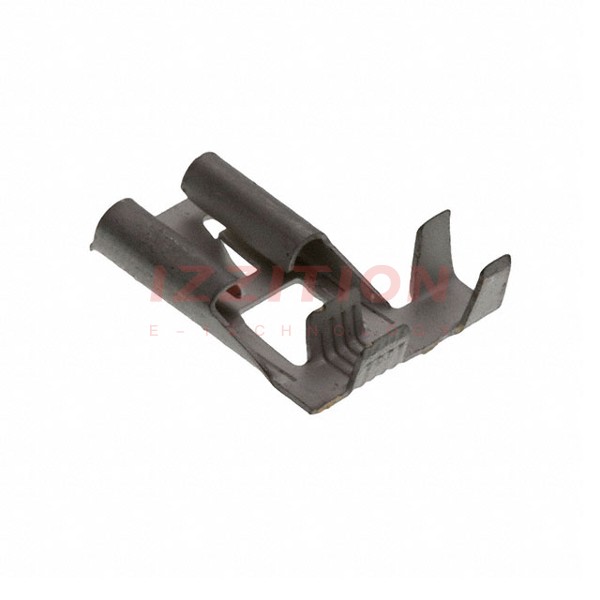

| Part Number | 180422-2 | 180429-2 | 180423-2 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Terminal Type | Angled - 90°, Flag | Angled - 90°, Flag | Standard |
| Gender | Female | Female | Female |
| Tab Width | 0.312" (7.92mm) | 0.250" (6.35mm) | 0.110" (2.79mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) |
| Tab Length | 0.339" (8.60mm) | - | - |
| Length - Overall | - | - | 0.528" (13.41mm) |
| Termination | Crimp | Crimp | Crimp |
| Wire Gauge | 13-17 AWG | 13.5-17 AWG | 15-20 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line) |
| Features | - | - | Serrated Termination |
| Color | - | - | - |
| Contact Material | Brass | Brass | Brass |
| Contact Finish | Tin | Tin | Tin |
