178489-1
  • Share:

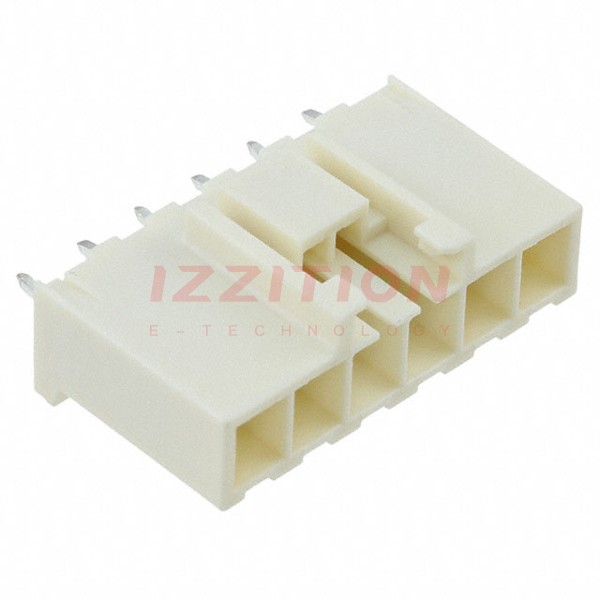

TE Connectivity AMP Connectors 178489-1

Manufacturer No:
178489-1
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
178489-1 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 6POS 3.96MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Tab
Pitch - Mating:0.156" (3.96mm)
Number of Positions:6
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Kinked Pin, Solder
Fastening Type:Locking Ramp
Contact Length - Mating:-
Contact Length - Post:0.150" (3.81mm)
Overall Contact Length:-
Insulation Height:0.551" (14.00mm)
Contact Shape:Rectangular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyamide (PA66), Nylon 6/6
Features:-
Operating Temperature:-30°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):Varies by Wire Gauge
Voltage Rating:-
0 Remaining View Similar

In Stock

$1.61
61

Please send RFQ , we will respond immediately.

Similar Products

Part Number 178489-1 178499-1   178487-1   178488-1
Manufacturer TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors
Product Status Active Active Active Active
Connector Type Header Header Header Header
Contact Type Tab Tab Tab Tab
Pitch - Mating 0.156" (3.96mm) 0.156" (3.96mm) 0.156" (3.96mm) 0.156" (3.96mm)
Number of Positions 6 6 4 5
Number of Rows 1 1 1 1
Row Spacing - Mating - - - -
Number of Positions Loaded All All All All
Style Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire
Shrouding Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall
Mounting Type Through Hole Through Hole, Right Angle Through Hole Through Hole
Termination Kinked Pin, Solder Solder Kinked Pin, Solder Kinked Pin, Solder
Fastening Type Locking Ramp Locking Ramp Locking Ramp Locking Ramp
Contact Length - Mating - - - -
Contact Length - Post 0.150" (3.81mm) 0.150" (3.81mm) 0.150" (3.81mm) 0.150" (3.81mm)
Overall Contact Length - - - -
Insulation Height 0.551" (14.00mm) 0.376" (9.55mm) 0.551" (14.00mm) 0.551" (14.00mm)
Contact Shape Rectangular Rectangular Rectangular Rectangular
Contact Finish - Mating Tin Tin Tin Tin
Contact Finish Thickness - Mating - - - -
Contact Finish - Post Tin Tin Tin Tin
Contact Material Brass Brass Brass Brass
Insulation Material Polyamide (PA66), Nylon 6/6 Polyamide (PA66), Nylon 6/6 Polyamide (PA66), Nylon 6/6 Polyamide (PA66), Nylon 6/6
Features - Board Lock - -
Operating Temperature -30°C ~ 105°C -30°C ~ 105°C -30°C ~ 105°C -30°C ~ 105°C
Ingress Protection - - - -
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
Insulation Color Natural Natural Natural Natural
Current Rating (Amps) Varies by Wire Gauge Varies by Wire Gauge Varies by Wire Gauge Varies by Wire Gauge
Voltage Rating - - - -
