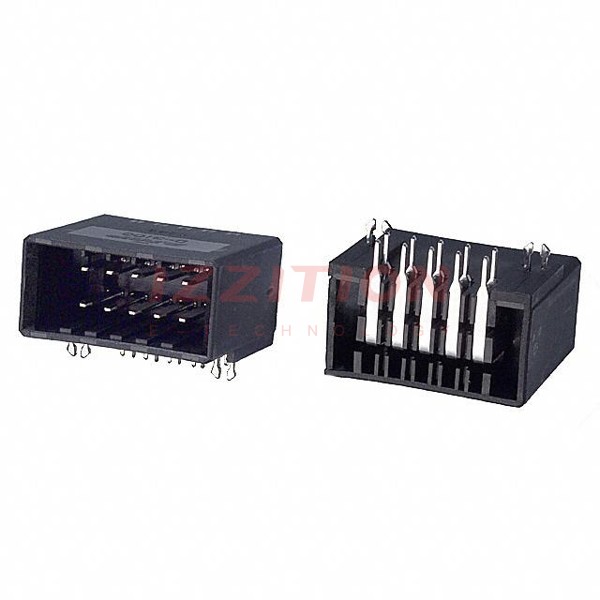

TE Connectivity AMP Connectors 178305-5

Manufacturer No:
178305-5
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
178305-5 Datasheet
ECAD Model:
-
Description:
CONN HEADER R/A 10POS 3.81MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Tab
Pitch - Mating:0.150" (3.81mm)
Number of Positions:10
Number of Rows:2
Row Spacing - Mating:0.200" (5.08mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Detent Lock
Contact Length - Mating:-
Contact Length - Post:0.150" (3.81mm)
Overall Contact Length:-
Insulation Height:0.568" (14.43mm)
Contact Shape:Rectangular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:78.7µin (2.00µm)
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Thermoplastic, Polyester, Glass Filled
Features:Board Lock
Operating Temperature:-55°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:250V
0 Remaining View Similar

In Stock

$4.45
78

Please send RFQ , we will respond immediately.

Similar Products

Part Number 178305-5 178307-5   178306-5   178325-5   178308-5   178303-5   178305-2   178305-3
Manufacturer TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors
Product Status Active Active Active Active Active Active Active Active
Connector Type Header Header Header Header Header Header Header Header
Contact Type Tab Tab Tab Tab Tab Tab Tab Tab
Pitch - Mating 0.150" (3.81mm) 0.150" (3.81mm) 0.150" (3.81mm) 0.150" (3.81mm) 0.150" (3.81mm) 0.150" (3.81mm) 0.150" (3.81mm) 0.150" (3.81mm)
Number of Positions 10 16 12 10 20 6 10 10
Number of Rows 2 2 2 2 2 2 2 2
Row Spacing - Mating 0.200" (5.08mm) 0.200" (5.08mm) 0.200" (5.08mm) 0.200" (5.08mm) 0.200" (5.08mm) 0.200" (5.08mm) 0.200" (5.08mm) 0.200" (5.08mm)
Number of Positions Loaded All All All All All All All All
Style Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable
Shrouding Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle
Termination Solder Solder Solder Solder Solder Solder Solder Solder
Fastening Type Detent Lock Detent Lock Detent Lock Detent Lock Detent Lock Detent Lock Detent Lock Detent Lock
Contact Length - Mating - - - - - - - -
Contact Length - Post 0.150" (3.81mm) 0.150" (3.81mm) 0.150" (3.81mm) 0.150" (3.81mm) 0.150" (3.81mm) 0.150" (3.81mm) 0.150" (3.81mm) 0.150" (3.81mm)
Overall Contact Length - - - - - - - -
Insulation Height 0.568" (14.43mm) 0.568" (14.43mm) 0.568" (14.43mm) 0.850" (21.59mm) 0.568" (14.43mm) 0.568" (14.43mm) 0.568" (14.43mm) 0.568" (14.43mm)
Contact Shape Rectangular Rectangular Rectangular Rectangular Rectangular Rectangular Rectangular Rectangular
Contact Finish - Mating Tin Tin Tin Tin Tin Tin Gold Gold
Contact Finish Thickness - Mating 78.7µin (2.00µm) 78.7µin (2.00µm) 78.7µin (2.00µm) 78.7µin (2.00µm) 78.7µin (2.00µm) 78.7µin (2.00µm) 15.0µin (0.38µm) 30.0µin (0.76µm)
Contact Finish - Post Tin Tin Tin Tin Tin Tin Tin Tin
Contact Material Copper Alloy Copper Alloy Copper Alloy Copper Alloy Copper Alloy Copper Alloy Copper Alloy Copper Alloy
Insulation Material Thermoplastic, Polyester, Glass Filled Thermoplastic, Polyester, Glass Filled Thermoplastic, Polyester, Glass Filled Thermoplastic, Polyester, Glass Filled Thermoplastic, Polyester, Glass Filled Thermoplastic, Polyester, Glass Filled Thermoplastic, Polyester, Glass Filled Thermoplastic, Polyester, Glass Filled
Features Board Lock Board Lock Board Lock Board Lock Board Lock Board Lock Board Lock Board Lock
Operating Temperature -55°C ~ 105°C -55°C ~ 105°C -55°C ~ 105°C -55°C ~ 105°C -55°C ~ 105°C -55°C ~ 105°C -55°C ~ 105°C -55°C ~ 105°C
Ingress Protection - - - - - - - -
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
Insulation Color Black Black Black Black Black Black Black Black
Current Rating (Amps) - - - - - - - -
Voltage Rating 250V 250V 250V 250V 250V 250V 250V 250V
