Please send RFQ , we will respond immediately.

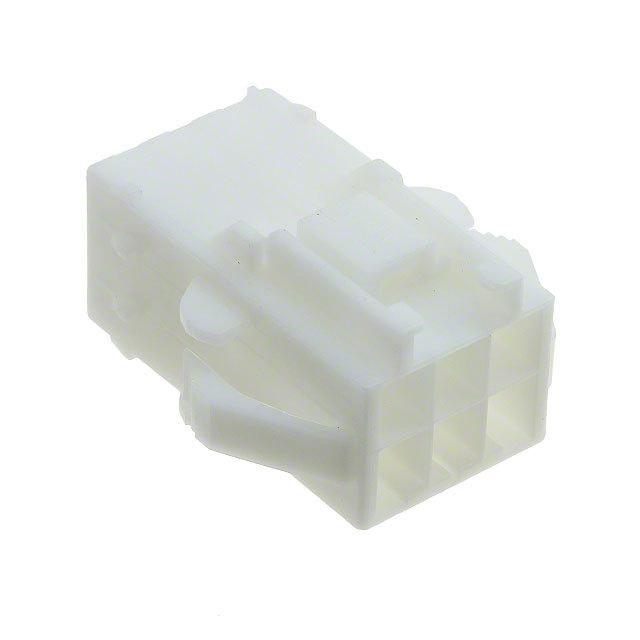

| Part Number | 177909-1 | 177909-4 | 177900-1 | 177901-1 | 177902-1 | 177903-1 | 177904-1 | 177905-1 | 177906-1 | 177907-1 | 177908-1 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Connector Type | Receptacle | Receptacle | Plug | Plug | Plug | Plug | Plug | Plug | Receptacle | Receptacle | Receptacle |
| Contact Type | Tab | Tab | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Tab | Tab | Tab |
| Number of Positions | 6 | 6 | 4 | 6 | 8 | 9 | 10 | 12 | 2 | 3 | 4 |
| Pitch | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) |
| Number of Rows | 2 | 2 | 2 | 2 | 2 | 3 | 2 | 3 | 1 | 1 | 2 |
| Row Spacing | 0.181" (4.60mm) | 0.181" (4.60mm) | 0.181" (4.60mm) | 0.181" (4.60mm) | 0.181" (4.60mm) | 0.181" (4.60mm) | 0.181" (4.60mm) | 0.181" (4.60mm) | - | - | 0.181" (4.60mm) |
| Mounting Type | Panel Mount, Snap-In | Panel Mount, Snap-In | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Panel Mount, Snap-In | Panel Mount, Snap-In | Panel Mount, Snap-In |
| Contact Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Fastening Type | Latch Holder | Latch Holder | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Holder | Latch Holder | Latch Holder |
| Color | Natural | Yellow | Natural | Natural | Natural | Natural | Natural | Natural | Natural | Natural | Natural |
| Features | - | - | - | - | - | - | - | - | - | - | - |
