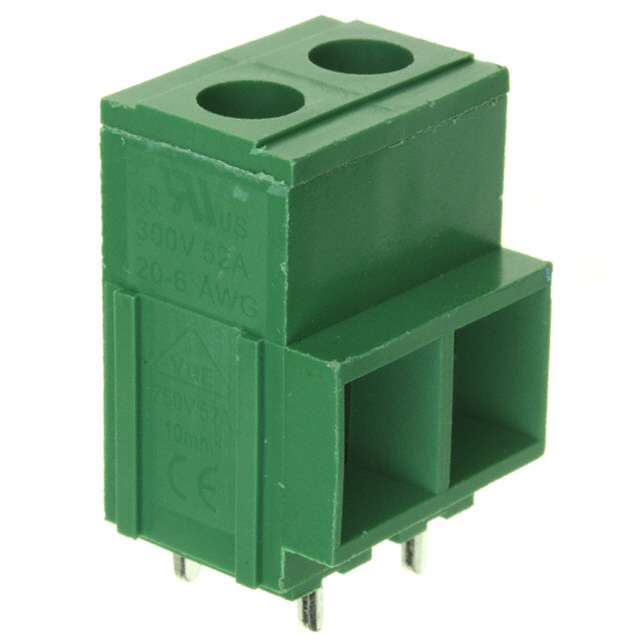

| Part Number | 1776886-2 | 1776886-3 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete |
| Number of Levels | 1 | 1 |
| Positions Per Level | 2 | 3 |
| Pitch | 0.400" (10.16mm) | 0.400" (10.16mm) |
| Mating Orientation | Horizontal with Board | Horizontal with Board |
| Current | 52 A | 52 A |
| Voltage | 300 V | 300 V |
| Wire Gauge | 6-20 AWG | 6-20 AWG |
| Mounting Type | Through Hole | Through Hole |
| Wire Termination | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp |
| Features | Interlocking (Side) | Interlocking (Side) |
| Color | Green | Green |
