Please send RFQ , we will respond immediately.

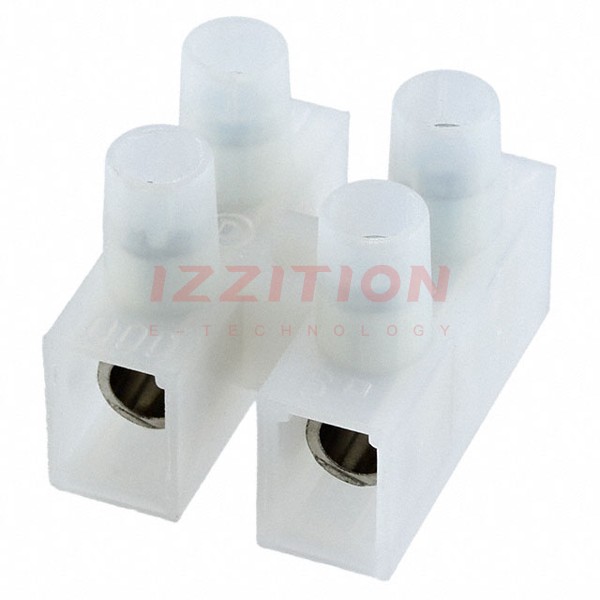

| Part Number | 1776303-2 | 1776313-2 | 1776303-4 | 1776303-5 | 1776303-8 | 1776303-7 | 1776303-6 | 1776303-9 | 1776309-2 | 1776302-2 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Obsolete | Active |
| Terminal Block Type | Eurostyle Terminal Strip | Eurostyle Terminal Strip | Eurostyle Terminal Strip | Eurostyle Terminal Strip | Eurostyle Terminal Strip | Eurostyle Terminal Strip | Eurostyle Terminal Strip | Eurostyle Terminal Strip | Eurostyle Terminal Strip | Eurostyle Terminal Strip |
| Number of Circuits | 2 | 2 | 4 | 5 | 8 | 7 | 6 | 9 | 2 | 2 |
| Number of Wire Entries | 4 | 4 | 8 | 10 | 16 | 14 | 12 | 18 | 4 | 4 |
| Pitch | 0.472" (12.00mm) | 0.571" (14.50mm) | 0.472" (12.00mm) | 0.472" (12.00mm) | 0.472" (12.00mm) | 0.472" (12.00mm) | 0.472" (12.00mm) | 0.472" (12.00mm) | 0.472" (12.00mm) | 0.472" (12.00mm) |
| Number of Rows | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Current Rating (Amps) | 50A | 65A | 50A | 50A | 50A | 50A | 50A | 50A | 34A | 40A |
| Voltage Rating | 250V | 600V | 250V | 250V | 250V | 250V | 250V | 250V | 400V | 250V |
| Wire Gauge | 8-22 AWG | 6-14 AWG | 8-22 AWG | 8-22 AWG | 8-22 AWG | 8-22 AWG | 8-22 AWG | 8-22 AWG | 10-24 AWG | 10-22 AWG |
| Top Termination | Screws | Screws | Screws | Screws | Screws | Screws | Screws | Screws | Screws | Screws |
| Bottom Termination | Closed | Closed | Closed | Closed | Closed | Closed | Closed | Closed | Closed | Closed |
| Barrier Type | Enclosed | Enclosed | Enclosed | Enclosed | Enclosed | Enclosed | Enclosed | Enclosed | Enclosed | Enclosed |
| Features | - | - | - | - | - | - | - | - | - | - |
| Color | Natural | Natural | Natural | Natural | Natural | Natural | Natural | Natural | Gray | Natural |
