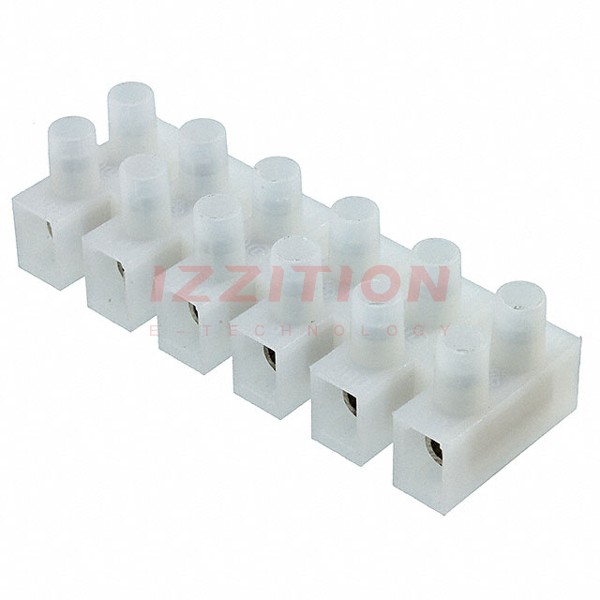

| Part Number | 1776302-6 | 1776302-8 | 1776302-7 | 1776303-6 | 1776302-9 | 1776301-6 | 1776302-1 | 1776302-2 | 1776302-3 | 1776302-4 | 1776302-5 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Discontinued at Digi-Key | Active | Active | Discontinued at Digi-Key | Active | Active |
| Terminal Block Type | Eurostyle Terminal Strip | Eurostyle Terminal Strip | Eurostyle Terminal Strip | Eurostyle Terminal Strip | Eurostyle Terminal Strip | Eurostyle Terminal Strip | Eurostyle Terminal Strip | Eurostyle Terminal Strip | Eurostyle Terminal Strip | Eurostyle Terminal Strip | Eurostyle Terminal Strip |
| Number of Circuits | 6 | 8 | 7 | 6 | 9 | 1 | 1 | 2 | 3 | 4 | 5 |
| Number of Wire Entries | 12 | 16 | 14 | 12 | 18 | 2 | 2 | 4 | 6 | 8 | 10 |
| Pitch | 0.472" (12.00mm) | 0.472" (12.00mm) | 0.472" (12.00mm) | 0.472" (12.00mm) | 0.472" (12.00mm) | - | - | 0.472" (12.00mm) | 0.472" (12.00mm) | 0.472" (12.00mm) | 0.472" (12.00mm) |
| Number of Rows | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Current Rating (Amps) | 40A | 40A | 40A | 50A | 40A | 16A | 40A | 40A | 40A | 40A | 40A |
| Voltage Rating | 250V | 250V | 250V | 250V | 250V | 400V | 250V | 250V | 250V | 250V | 250V |
| Wire Gauge | 10-22 AWG | 10-22 AWG | 10-22 AWG | 8-22 AWG | 10-22 AWG | 12-22 AWG | 10-22 AWG | 10-22 AWG | 10-22 AWG | 10-22 AWG | 10-22 AWG |
| Top Termination | Screws | Screws | Screws | Screws | Screws | Screws | Screws | Screws | Screws | Screws | Screws |
| Bottom Termination | Closed | Closed | Closed | Closed | Closed | Closed | Closed | Closed | Closed | Closed | Closed |
| Barrier Type | Enclosed | Enclosed | Enclosed | Enclosed | Enclosed | Enclosed | Enclosed | Enclosed | Enclosed | Enclosed | Enclosed |
| Features | - | - | - | - | - | Fuse | - | - | - | - | - |
| Color | Natural | Natural | Natural | Natural | Natural | Gray | Natural | Natural | Natural | Natural | Natural |
