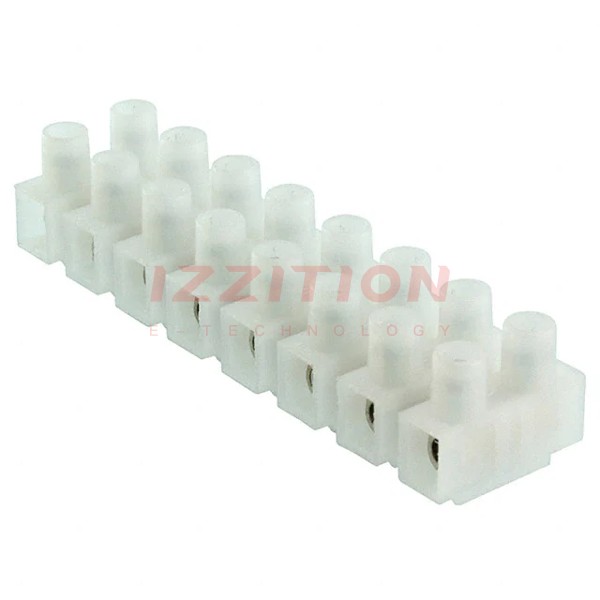

| Part Number | 1776297-8 | 1776293-8 | 1776294-8 | 1776296-8 | 1776297-2 | 1776297-3 | 1776297-4 | 1776297-5 | 1776297-6 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Terminal Block Type | Eurostyle Terminal Strip | Eurostyle Terminal Strip | Eurostyle Terminal Strip | Eurostyle Terminal Strip | Eurostyle Terminal Strip | Eurostyle Terminal Strip | Eurostyle Terminal Strip | Eurostyle Terminal Strip | Eurostyle Terminal Strip |
| Number of Circuits | 8 | 8 | 8 | 8 | 2 | 3 | 4 | 5 | 6 |
| Number of Wire Entries | 16 | 16 | 16 | 16 | 4 | 6 | 8 | 10 | 12 |
| Pitch | 0.394" (10.00mm) | 0.315" (8.00mm) | 0.315" (8.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Number of Rows | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Current Rating (Amps) | 30A | 30A | 30A | 30A | 30A | 30A | 30A | 30A | 30A |
| Voltage Rating | 250V | 250V | 250V | 250V | 250V | 250V | 250V | 250V | 250V |
| Wire Gauge | 10-22 AWG | 12-22 AWG | 12-24 AWG | 10-24 AWG | 10-22 AWG | 10-22 AWG | 10-22 AWG | 10-22 AWG | 10-22 AWG |
| Top Termination | Screws | Screws | Screws | Screws | Screws | Screws | Screws | Screws | Screws |
| Bottom Termination | Closed | Closed | Closed | Closed | Closed | Closed | Closed | Closed | Closed |
| Barrier Type | Enclosed | Enclosed | Enclosed | Enclosed | Enclosed | Enclosed | Enclosed | Enclosed | Enclosed |
| Features | - | - | - | - | - | - | - | - | - |
| Color | Natural | Natural | Natural | Natural | Natural | Natural | Natural | Natural | Natural |
