Please send RFQ , we will respond immediately.

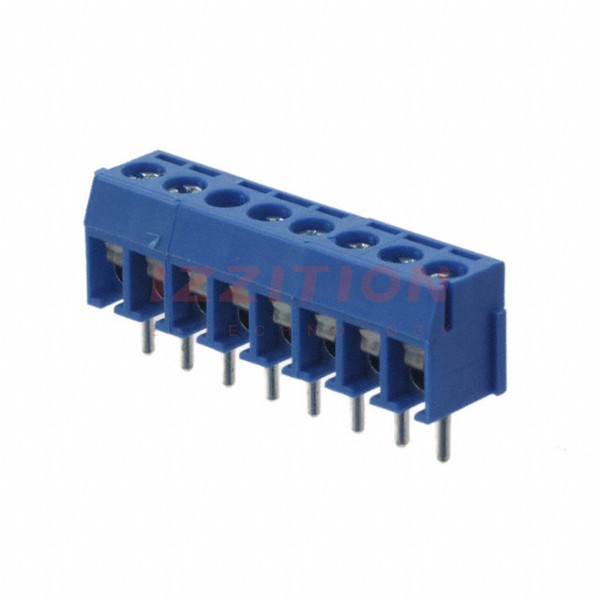

| Part Number | 1776275-8 | 1776275-2 | 1776275-3 | 1776275-4 | 1776275-5 | 1776275-6 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active |
| Number of Levels | 1 | 1 | 1 | 1 | 1 | 1 |
| Positions Per Level | 8 | 2 | 3 | 4 | 5 | 6 |
| Pitch | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.138" (3.50mm) |
| Mating Orientation | Horizontal with Board | Horizontal with Board | Horizontal with Board | Horizontal with Board | Horizontal with Board | Horizontal with Board |
| Current | 7 A | 7 A | 7 A | 7 A | 7 A | 7 A |
| Voltage | 250 V | 250 V | 250 V | 250 V | 250 V | 250 V |
| Wire Gauge | 18-26 AWG | 18-26 AWG | 18-26 AWG | 18-26 AWG | 18-26 AWG | 18-26 AWG |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Wire Termination | Screw - Leaf Spring, Wire Guard | Screw - Leaf Spring, Wire Guard | Screw - Leaf Spring, Wire Guard | Screw - Leaf Spring, Wire Guard | Screw - Leaf Spring, Wire Guard | Screw - Leaf Spring, Wire Guard |
| Features | Interlocking (Side) | Interlocking (Side) | Interlocking (Side) | Interlocking (Side) | Interlocking (Side) | Interlocking (Side) |
| Color | Blue | Blue | Blue | Blue | Blue | Blue |
