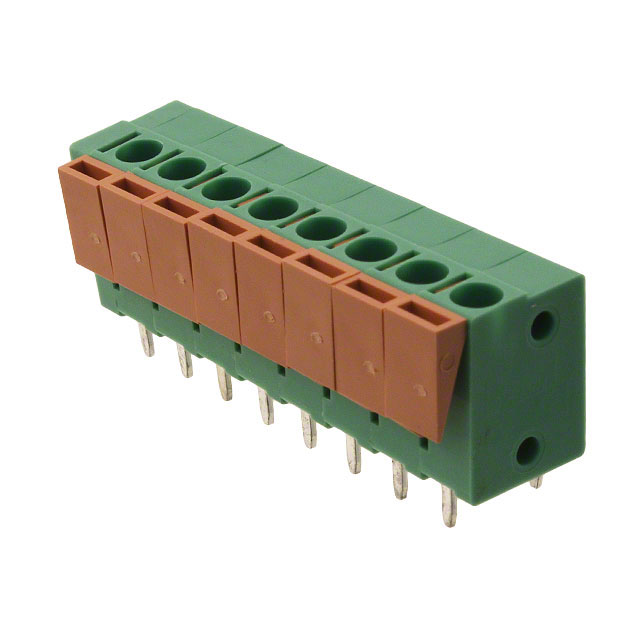

| Part Number | 1776259-8 | 1776252-8 | 1776259-2 | 1776259-3 | 1776259-4 | 1776259-5 | 1776259-6 |
|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Discontinued at Digi-Key |
| Number of Levels | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Positions Per Level | 8 | 8 | 2 | 3 | 4 | 5 | 6 |
| Pitch | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Mating Orientation | Vertical with Board | 45° (135°) Angle with Board | Vertical with Board | Vertical with Board | Vertical with Board | Vertical with Board | Vertical with Board |
| Current | 10 A | 10 A | 10 A | 10 A | 10 A | 10 A | 10 A |
| Voltage | 300 V | 300 V | 300 V | 300 V | 300 V | 300 V | 300 V |
| Wire Gauge | 14-22 AWG | 14-22 AWG | 14-22 AWG | 14-22 AWG | 14-22 AWG | 14-22 AWG | 14-22 AWG |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Wire Termination | Screwless - Leg Spring, Push-In Spring | Screw - Leaf Spring, Wire Guard | Screwless - Leg Spring, Push-In Spring | Screwless - Leg Spring, Push-In Spring | Screwless - Leg Spring, Push-In Spring | Screwless - Leg Spring, Push-In Spring | Screwless - Leg Spring, Push-In Spring |
| Features | - | Interlocking (Side) | - | - | - | - | - |
| Color | Green | Blue | Green | Green | Green | Green | Green |
