1776244-5
  • Share:

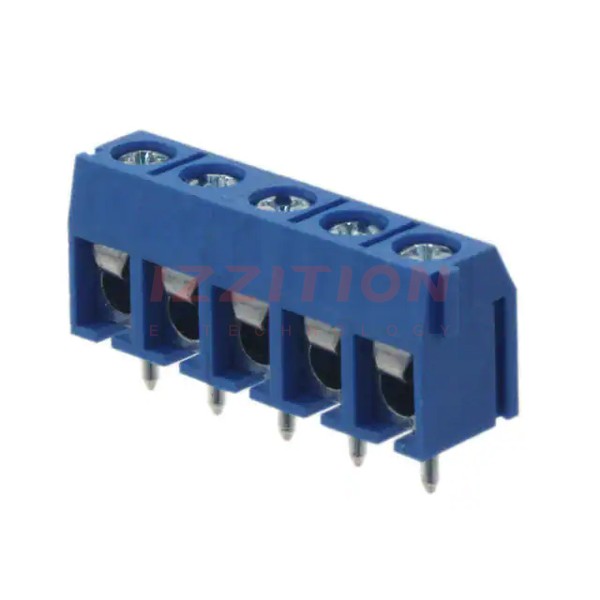

TE Connectivity AMP Connectors 1776244-5

Manufacturer No:
1776244-5
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
1776244-5 Datasheet
ECAD Model:
-
Description:
TERM BLK 5POS SIDE ENTRY 5MM PCB
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Levels:1
Positions Per Level:5
Pitch:0.197" (5.00mm)
Mating Orientation:Horizontal with Board
Current:10 A
Voltage:300 V
Wire Gauge:14-22 AWG
Mounting Type:Through Hole
Wire Termination:Screw - Leaf Spring, Wire Guard
Features:Interlocking (Side)
Color:Blue
0 Remaining View Similar

In Stock

$2.36
413

Please send RFQ , we will respond immediately.

Similar Products

Part Number 1776244-5 1776244-6   1776244-8   1776244-2   1776244-3   1776244-4
Manufacturer TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors
Product Status Active Active Active Active Active Active
Number of Levels 1 1 1 1 1 1
Positions Per Level 5 6 8 2 3 4
Pitch 0.197" (5.00mm) 0.197" (5.00mm) 0.197" (5.00mm) 0.197" (5.00mm) 0.197" (5.00mm) 0.197" (5.00mm)
Mating Orientation Horizontal with Board Horizontal with Board Horizontal with Board Horizontal with Board Horizontal with Board Horizontal with Board
Current 10 A 10 A 10 A 10 A 10 A 10 A
Voltage 300 V 300 V 300 V 300 V 300 V 300 V
Wire Gauge 14-22 AWG 14-22 AWG 14-22 AWG 14-22 AWG 14-22 AWG 14-22 AWG
Mounting Type Through Hole Through Hole Through Hole Through Hole Through Hole Through Hole
Wire Termination Screw - Leaf Spring, Wire Guard Screw - Leaf Spring, Wire Guard Screw - Leaf Spring, Wire Guard Screw - Leaf Spring, Wire Guard Screw - Leaf Spring, Wire Guard Screw - Leaf Spring, Wire Guard
Features Interlocking (Side) Interlocking (Side) Interlocking (Side) Interlocking (Side) Interlocking (Side) Interlocking (Side)
Color Blue Blue Blue Blue Blue Blue
