Please send RFQ , we will respond immediately.

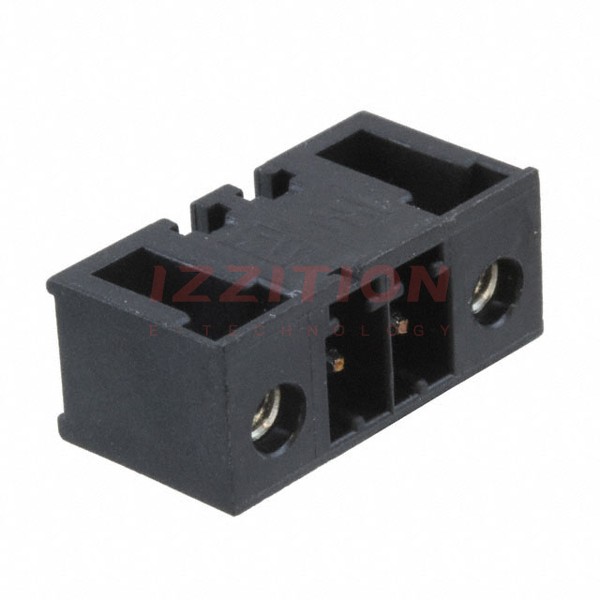

| Part Number | 1776136-2 | 1776166-2 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Type | Header, Male Pins, Shrouded (4 Side) | Header, Male Pins, Shrouded (4 Side) |
| Number of Positions | 2 | 4 |
| Positions Per Level | 2 | 2 |
| Number of Levels | 1 | 2 |
| Pitch | 0.138" (3.50mm) | 0.197" (5.00mm) |
| Header Orientation | 90°, Right Angle | 90°, Right Angle |
| Plug Wire Entry | - | - |
| Termination Style | Solder | Solder |
| Mounting Type | Through Hole | Through Hole |
| Current - IEC | - | - |
| Voltage - IEC | - | - |
| Current - UL | 11 A | 12 A |
| Voltage - UL | 300 V | 300 V |
| Wire Gauge or Range - AWG | - | - |
| Wire Gauge or Range - mm² | - | - |
| Color | Black | Black |
| Operating Temperature | -40°C ~ 110°C | -40°C ~ 110°C |
| Contact Mating Finish | Tin | Tin |
| Features | Mating Flange | Interlocking (Side) |
