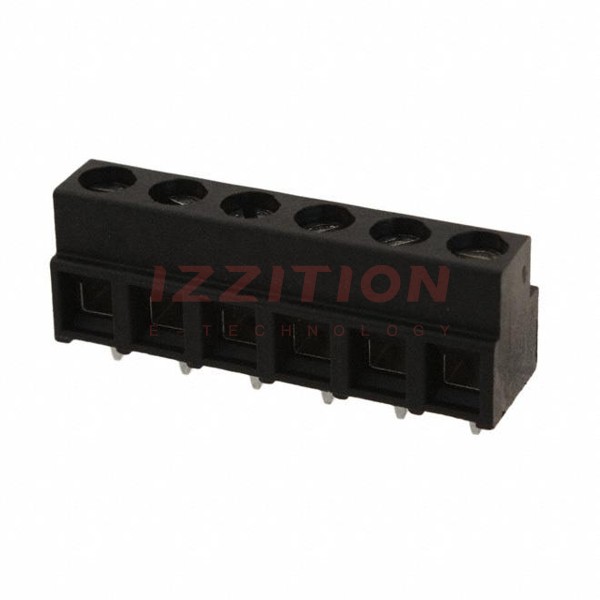

| Part Number | 1776119-6 | 1776113-6 | 1776119-2 | 1776119-3 | 1776119-4 | 1776119-5 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active |
| Number of Levels | 1 | 1 | 1 | 1 | 1 | 1 |
| Positions Per Level | 6 | 6 | 2 | 3 | 4 | 5 |
| Pitch | 0.200" (5.08mm) | 0.150" (3.81mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) |
| Mating Orientation | Horizontal with Board | Horizontal with Board | Horizontal with Board | Horizontal with Board | Horizontal with Board | Horizontal with Board |
| Current | 13.5 A | 12 A | 13.5 A | 13.5 A | 13.5 A | 13.5 A |
| Voltage | 300 V | 150 V | 300 V | 300 V | 300 V | 300 V |
| Wire Gauge | 16-30 AWG | 16-28 AWG | 16-30 AWG | 16-30 AWG | 16-30 AWG | 16-30 AWG |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Wire Termination | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp |
| Features | - | - | - | - | - | - |
| Color | Black | Black | Black | Black | Black | Black |
