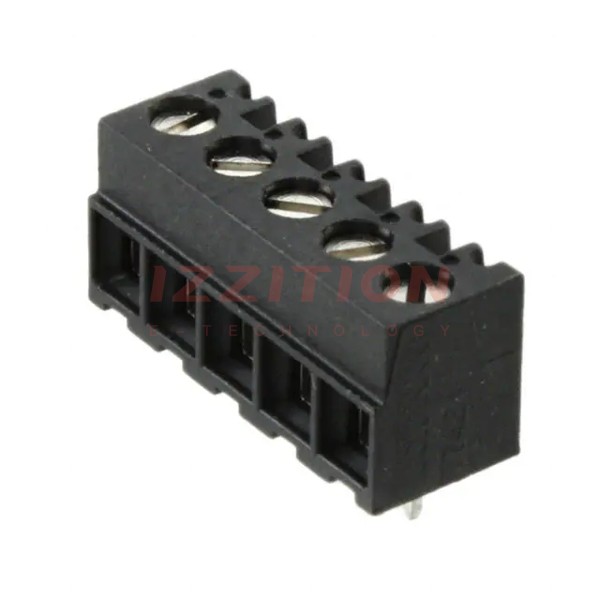

| Part Number | 1776113-5 | 1776113-8 | 1776113-6 | 1776119-5 | 1776113-2 | 1776113-3 | 1776113-4 |
|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Number of Levels | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Positions Per Level | 5 | 8 | 6 | 5 | 2 | 3 | 4 |
| Pitch | 0.150" (3.81mm) | 0.150" (3.81mm) | 0.150" (3.81mm) | 0.200" (5.08mm) | 0.150" (3.81mm) | 0.150" (3.81mm) | 0.150" (3.81mm) |
| Mating Orientation | Horizontal with Board | Horizontal with Board | Horizontal with Board | Horizontal with Board | Horizontal with Board | Horizontal with Board | Horizontal with Board |
| Current | 12 A | 12 A | 12 A | 13.5 A | 12 A | 12 A | 12 A |
| Voltage | 150 V | 150 V | 150 V | 300 V | 150 V | 150 V | 150 V |
| Wire Gauge | 16-28 AWG | 16-28 AWG | 16-28 AWG | 16-30 AWG | 16-28 AWG | 16-28 AWG | 16-28 AWG |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Wire Termination | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp |
| Features | - | - | - | - | - | - | - |
| Color | Black | Black | Black | Black | Black | Black | Black |
