1775099-8
  • Share:

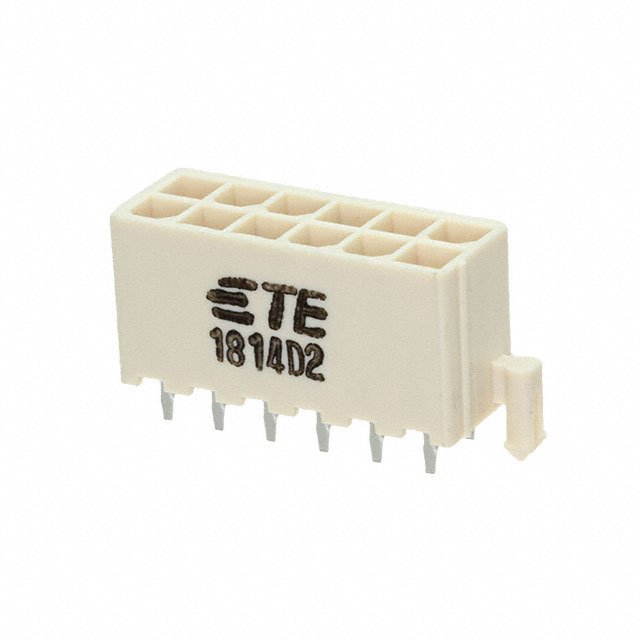

TE Connectivity AMP Connectors 1775099-8

Manufacturer No:
1775099-8
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
1775099-8 Datasheet
ECAD Model:
-
Description:
CONN RCPT 12POS 0.165 TIN PCB
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.165" (4.20mm)
Number of Positions:12
Number of Rows:2
Row Spacing - Mating:0.165" (4.20mm)
Number of Positions Loaded:All
Style:-
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Locking Ramp
Contact Length - Mating:-
Contact Length - Post:0.126" (3.20mm)
Overall Contact Length:-
Insulation Height:0.504" (12.80mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:120.0µin (3.05µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyamide (PA9T), Nylon 9T
Features:Board Lock
Operating Temperature:-25°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Ivory
Current Rating (Amps):9A
Voltage Rating:250VAC
0 Remaining View Similar

In Stock

$0.76
289

Please send RFQ , we will respond immediately.
