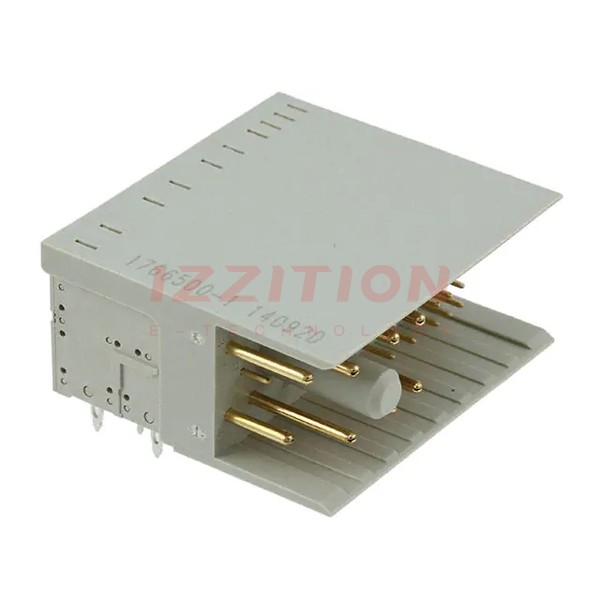

| Part Number | 1766500-1 | 1766501-1 | 1766503-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Obsolete |
| Connector Usage | Front Board | Backplane | Backplane |
| Connector Type | Plug, Male Pins | Receptacle, Female Sockets | Header, Male Pins and Blades |
| Connector Style | AdvancedTCA® | AdvancedTCA® | AdvancedTCA® |
| Number of Positions | 34 | 34 | 34 |
| Number of Positions Loaded | 30 | 30 | - |
| Pitch | - | - | - |
| Number of Rows | - | - | - |
| Number of Columns | - | - | - |
| Mounting Type | Through Hole, Right Angle | Through Hole | Through Hole |
| Termination | Press-Fit | Press-Fit | Press-Fit |
| Contact Layout, Typical | 26 Signal, 8 Power | 26 Signal, 8 Power | 26 Signal, 8 Power |
| Features | Guide Pin | - | Board Guide |
| Contact Finish | Gold | Gold | Gold |
| Contact Finish Thickness | 50.0µin (1.27µm) | 50.0µin (1.27µm) | 30.0µin (0.76µm) |
| Color | Gray | Gray | Gray |
