1766436-1

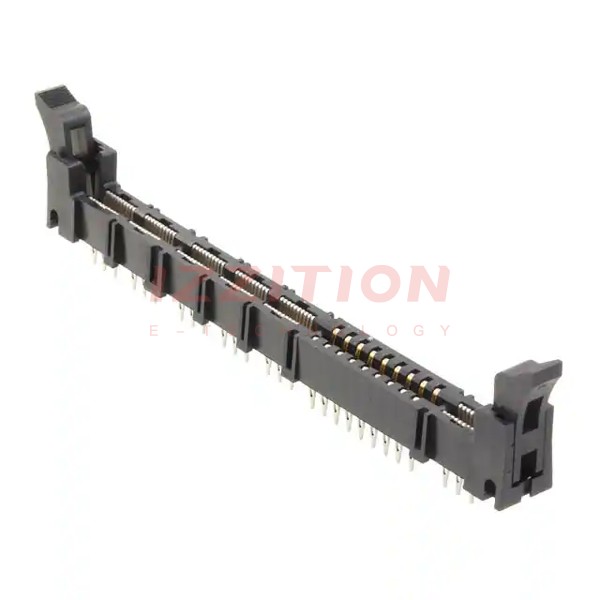

1766436-1 Image
×
Favorite
Compare
Add to RFQ
Share:
TE Connectivity AMP Connectors 1766436-1
Manufacturer No:
1766436-1
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
1766436-1 Datasheet
ECAD Model:
-
Description:
CONN EDGE DUAL FMALE 30POS 0.098
Delivery:
Payment:
Product Attributes
Card Type:
Non Specified - Dual Edge
Gender:
Female
Number of Positions/Bay/Row:
1; 9; 1; 1; 1; 1; 1
Number of Positions:
30 (18 + 12 Power)
Card Thickness:
0.062" (1.57mm)
Number of Rows:
2
Pitch:
-
Read Out:
Dual
Features:
Latches
Mounting Type:
Through Hole
Termination:
Press-Fit
Contact Material:
Copper Alloy
Contact Finish:
Gold
Contact Finish Thickness:
30.0µin (0.76µm)
Contact Type:
-
Color:
Black
Flange Feature:
-
Operating Temperature:
-55°C ~ 105°C
0
Remaining
View Similar
In Stock
UnitPrice:
$12.79
Quantity:
22
