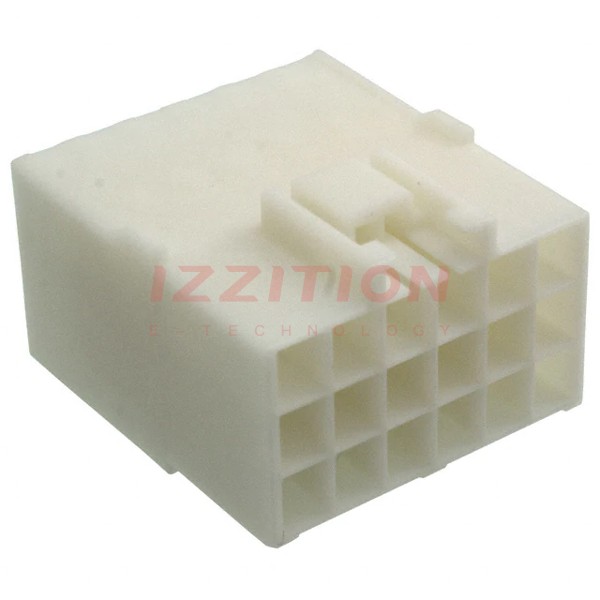

| Part Number | 176291-1 | 176295-1 | 176297-1 | 176292-1 | 176293-1 | 176294-1 | 176299-1 | 176296-1 | 176291-9 | 176271-1 | 176281-1 | 176290-1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Connector Type | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Plug | Receptacle | Receptacle |
| Contact Type | Tab | Tab | Tab | Tab | Tab | Tab | Tab | Tab | Tab | Female Socket | Tab | Tab |
| Number of Positions | 18 | 6 | 9 | 2 | 3 | 4 | 12 | 8 | 18 | 2 | 1 | 15 |
| Pitch | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | - | 0.156" (3.96mm) |
| Number of Rows | 3 | 2 | 3 | 1 | 1 | 2 | 3 | 2 | 3 | 1 | 1 | 3 |
| Row Spacing | 0.181" (4.60mm) | 0.181" (4.60mm) | 0.181" (4.60mm) | - | - | 0.181" (4.60mm) | 0.181" (4.60mm) | 0.181" (4.60mm) | 0.181" (4.60mm) | - | - | 0.181" (4.60mm) |
| Mounting Type | Free Hanging (In-Line) | Panel Mount, Snap-In | Panel Mount, Snap-In | Panel Mount, Snap-In | Panel Mount, Snap-In | Panel Mount, Snap-In | Panel Mount, Snap-In | Panel Mount, Snap-In | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Contact Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Fastening Type | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock |
| Color | Natural | Natural | Natural | Natural | Natural | Natural | Natural | Natural | Black | Natural | Natural | Natural |
| Features | - | - | - | - | - | - | - | - | - | - | - | - |
