Please send RFQ , we will respond immediately.

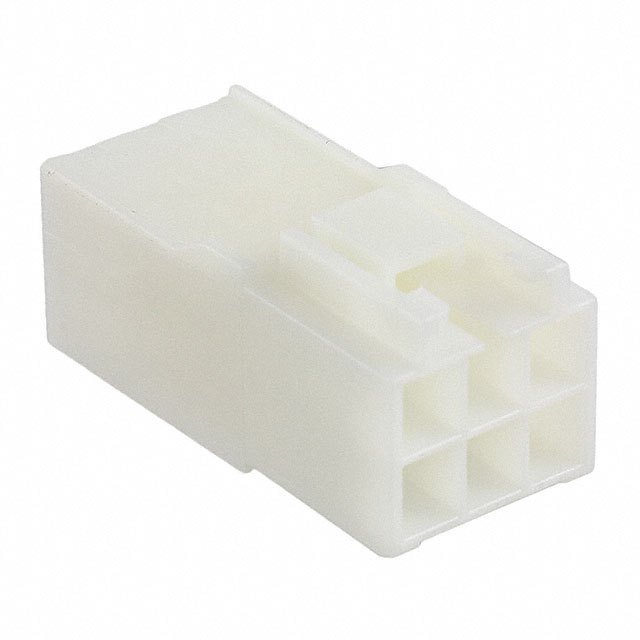

| Part Number | 176285-1 | 176288-1 | 176295-1 | 176285-6 | 176286-1 | 176289-1 | 176287-1 | 176275-1 | 176280-1 | 176281-1 | 176282-1 | 176283-1 | 176284-1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Connector Type | Receptacle | Receptacle | Receptacle | Receptacle | Plug | Receptacle | Receptacle | Plug | Plug | Receptacle | Receptacle | Receptacle | Receptacle |
| Contact Type | Male Pin | Tab | Tab | Male Pin | Tab | Tab | Tab | Female Socket | Female Socket | Tab | Tab | Tab | Tab |
| Number of Positions | 6 | 10 | 6 | 6 | 8 | 12 | 9 | 8 | 18 | 1 | 2 | 3 | 4 |
| Pitch | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | - | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) |
| Number of Rows | 2 | 2 | 2 | 2 | 2 | 3 | 3 | 2 | 3 | 1 | 1 | 1 | 2 |
| Row Spacing | 0.181" (4.60mm) | 0.181" (4.60mm) | 0.181" (4.60mm) | 0.181" (4.60mm) | 0.181" (4.60mm) | 0.181" (4.60mm) | 0.181" (4.60mm) | 0.181" (4.60mm) | 0.181" (4.60mm) | - | - | - | 0.181" (4.60mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Panel Mount, Snap-In | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Contact Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Fastening Type | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock |
| Color | Natural | Natural | Natural | Blue | Natural | Natural | Natural | Natural | Natural | Natural | Natural | Natural | Natural |
| Features | - | - | - | - | - | - | - | - | - | - | - | - | - |
