Please send RFQ , we will respond immediately.

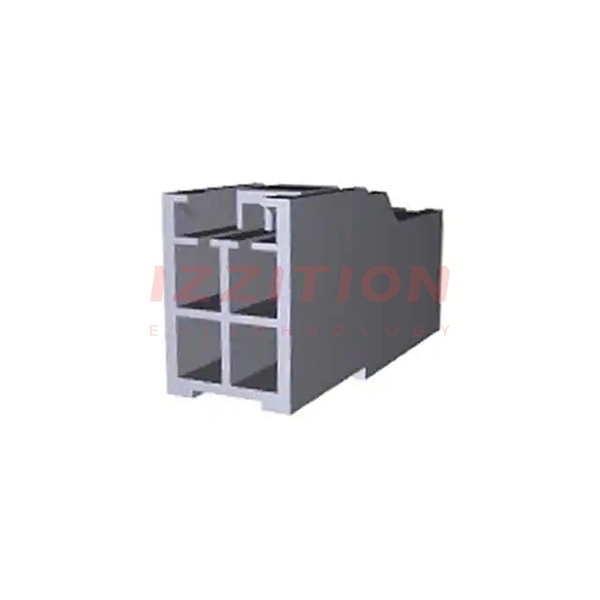

| Part Number | 176284-2 | 176284-9 | 176287-2 | 176284-4 | 176284-6 | 176288-2 | 176274-2 | 176281-2 | 176282-2 | 176283-2 | 176284-1 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Connector Type | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Plug | Receptacle | Receptacle | Receptacle | Receptacle |
| Contact Type | Tab | Tab | Tab | Tab | Tab | Tab | Female Socket | Tab | Tab | Tab | Tab |
| Number of Positions | 4 | 4 | 9 | 4 | 4 | 10 | 6 | 1 | 2 | 3 | 4 |
| Pitch | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | - | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) |
| Number of Rows | 2 | 2 | 3 | 2 | 2 | 2 | 2 | 1 | 1 | 1 | 2 |
| Row Spacing | 0.181" (4.60mm) | 0.181" (4.60mm) | 0.181" (4.60mm) | 0.181" (4.60mm) | 0.181" (4.60mm) | 0.181" (4.60mm) | 0.181" (4.60mm) | - | - | - | 0.181" (4.60mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Contact Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Fastening Type | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock |
| Color | Red | Black | Red | Yellow | Blue | Red | Red | Red | Red | Red | Natural |
| Features | - | - | - | - | - | - | - | - | - | - | - |
