Please send RFQ , we will respond immediately.

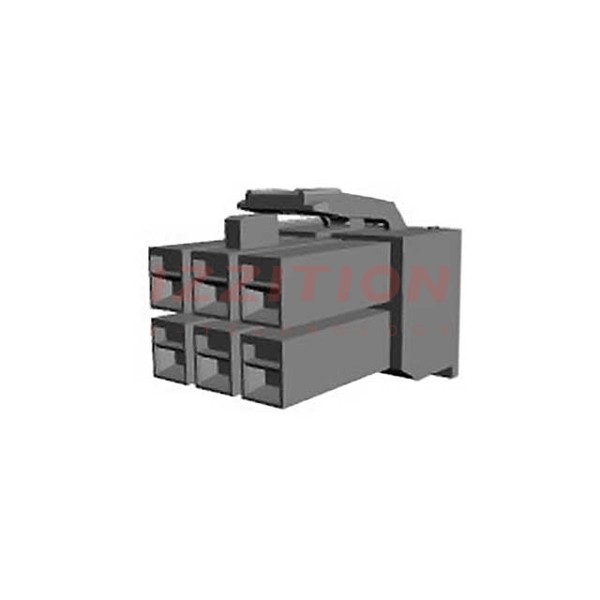

| Part Number | 176274-4 | 176274-9 | 176274-6 | 176284-4 | 176278-4 | 176276-4 | 176270-4 | 176271-4 | 176272-4 | 176273-4 | 176274-1 | 176274-2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Obsolete | Active | Active |
| Connector Type | Plug | Plug | Plug | Receptacle | Plug | Plug | Plug | Plug | Plug | Plug | Plug | Plug |
| Contact Type | Female Socket | Female Socket | Female Socket | Tab | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket |
| Number of Positions | 6 | 6 | 6 | 4 | 12 | 9 | 1 | 2 | 3 | 4 | 6 | 6 |
| Pitch | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | - | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) |
| Number of Rows | 2 | 2 | 2 | 2 | 3 | 3 | 1 | 1 | 1 | 2 | 2 | 2 |
| Row Spacing | 0.181" (4.60mm) | 0.181" (4.60mm) | 0.181" (4.60mm) | 0.181" (4.60mm) | 0.181" (4.60mm) | 0.181" (4.60mm) | - | - | - | 0.181" (4.60mm) | 0.181" (4.60mm) | 0.181" (4.60mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Contact Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Fastening Type | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock |
| Color | Yellow | Black | Blue | Yellow | Yellow | Yellow | Yellow | Yellow | Yellow | Yellow | Natural | Red |
| Features | - | - | - | - | - | - | - | - | - | - | - | - |
