Please send RFQ , we will respond immediately.

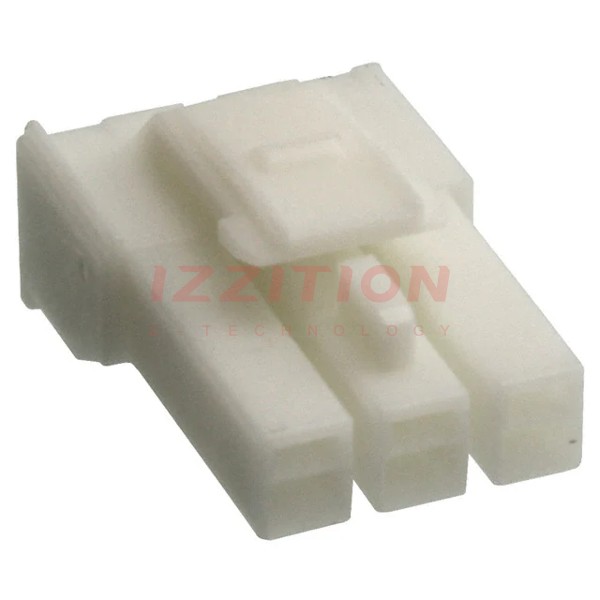

| Part Number | 176272-1 | 176273-1 | 176282-1 | 176276-1 | 176275-1 | 176278-1 | 176272-2 | 176272-4 | 176274-1 | 176292-1 | 176279-1 | 176277-1 | 176270-1 | 176271-1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Connector Type | Plug | Plug | Receptacle | Plug | Plug | Plug | Plug | Plug | Plug | Receptacle | Plug | Plug | Plug | Plug |
| Contact Type | Female Socket | Female Socket | Tab | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Tab | Female Socket | Female Socket | Female Socket | Female Socket |
| Number of Positions | 3 | 4 | 2 | 9 | 8 | 12 | 3 | 3 | 6 | 2 | 15 | 10 | 1 | 2 |
| Pitch | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | - | 0.156" (3.96mm) |
| Number of Rows | 1 | 2 | 1 | 3 | 2 | 3 | 1 | 1 | 2 | 1 | 3 | 2 | 1 | 1 |
| Row Spacing | - | 0.181" (4.60mm) | - | 0.181" (4.60mm) | 0.181" (4.60mm) | 0.181" (4.60mm) | - | - | 0.181" (4.60mm) | - | 0.181" (4.60mm) | 0.181" (4.60mm) | - | - |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Panel Mount, Snap-In | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Contact Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Fastening Type | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock |
| Color | Natural | Natural | Natural | Natural | Natural | Natural | Red | Yellow | Natural | Natural | Natural | Natural | Natural | Natural |
| Features | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
