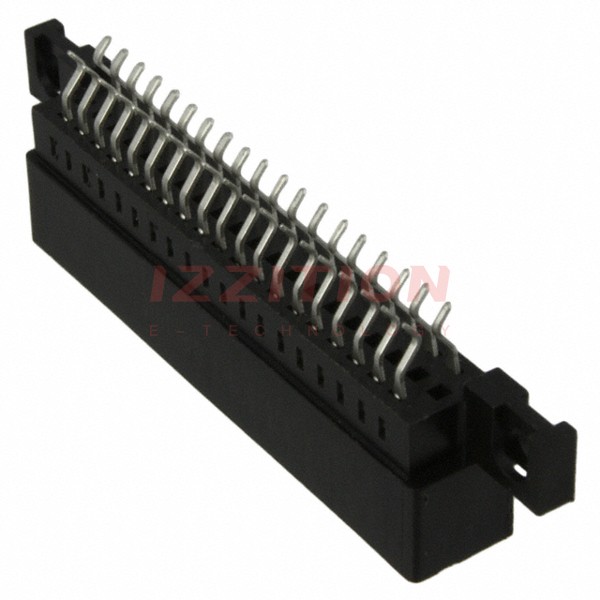

TE Connectivity AMP Connectors 1761500-1

Manufacturer No:
1761500-1
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tray
Datasheet:
1761500-1 Datasheet
ECAD Model:
-
Description:
CONN EDGE DUAL FMALE 26POS 0.100
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Card Type:Non Specified - Dual Edge
Gender:Female
Number of Positions/Bay/Row:1; 1; 1; 10
Number of Positions:26 (20 + 6 Power)
Card Thickness:0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows:2
Pitch:0.100" (2.54mm)
Read Out:Dual
Features:Card Extender
Mounting Type:Board Edge, Straddle Mount
Termination:Solder
Contact Material:Copper Alloy
Contact Finish:Gold
Contact Finish Thickness:30.0µin (0.76µm)
Contact Type:-
Color:Black
Flange Feature:Flush Mount, Side Opening, Unthreaded, 0.145" (3.68mm) Dia
Operating Temperature:-55°C ~ 85°C
0 Remaining View Similar

In Stock

$8.10
52

Please send RFQ , we will respond immediately.
