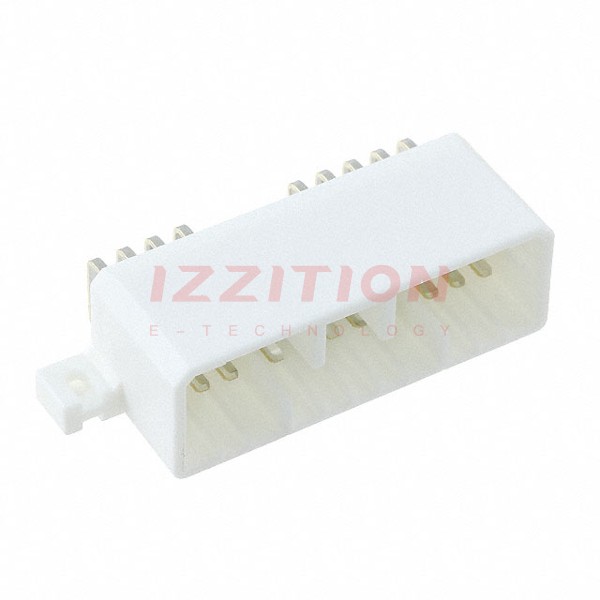

TE Connectivity AMP Connectors 175785-1

Manufacturer No:
175785-1
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tray
Datasheet:
175785-1 Datasheet
ECAD Model:
-
Description:
CONN HEADER R/A 20POS 3.5MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:-
Contact Type:Tab
Pitch - Mating:0.138" (3.50mm)
Number of Positions:20
Number of Rows:2
Row Spacing - Mating:0.232" (5.90mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:-
Contact Length - Post:0.157" (4.00mm)
Overall Contact Length:-
Insulation Height:0.622" (15.80mm)
Contact Shape:Rectangular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polybutylene Terephthalate (PBT)
Features:Mounting Flange
Operating Temperature:-30°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:White
Current Rating (Amps):Varies by Wire Gauge
Voltage Rating:-
0 Remaining View Similar

In Stock

$5.02
151

Please send RFQ , we will respond immediately.
