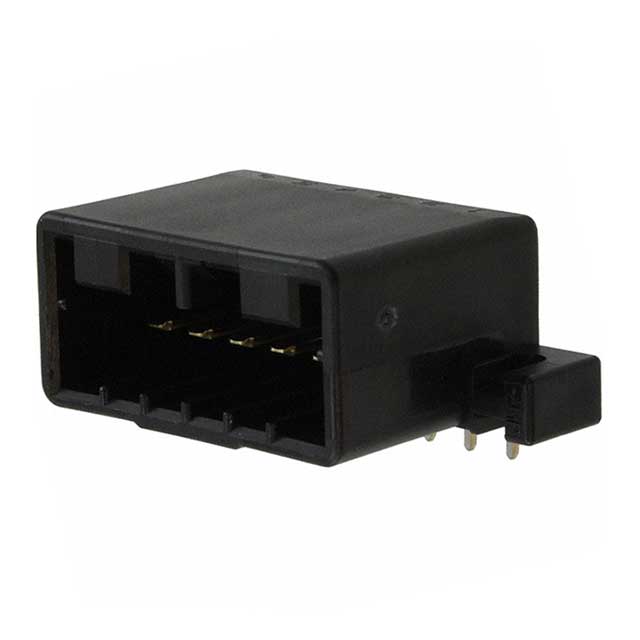

TE Connectivity AMP Connectors 175783-2

Manufacturer No:
175783-2
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
175783-2 Datasheet
ECAD Model:
-
Description:
CONN HEADER R/A 6POS 3.5MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:-
Contact Type:Tab
Pitch - Mating:0.138" (3.50mm)
Number of Positions:6
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.492" (12.50mm)
Contact Shape:Rectangular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polybutylene Terephthalate (PBT)
Features:Mounting Flange
Operating Temperature:-30°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Black
Current Rating (Amps):Varies by Wire Gauge
Voltage Rating:-
0 Remaining View Similar

In Stock

$1.92
422

Please send RFQ , we will respond immediately.
