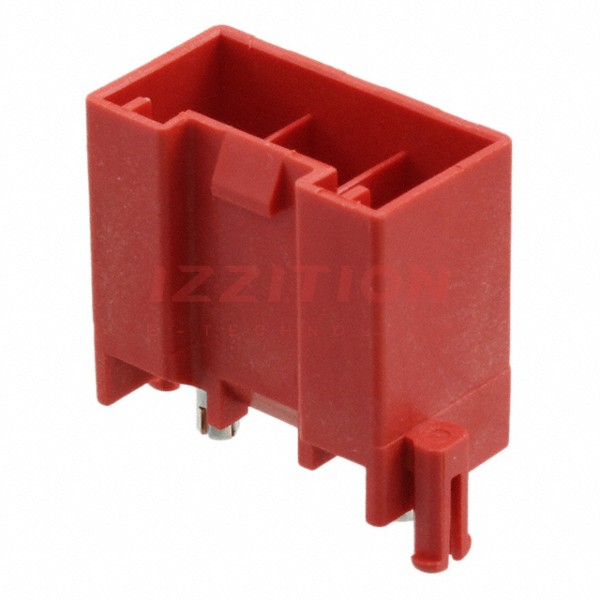

| Part Number | 1747996-2 | 1747996-4 | 1747996-3 | 1747994-2 | 1747996-1 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active |
| Connector Type | Header | Header | Header | Header | Header |
| Contact Type | Tab | Tab | Tab | Tab | Tab |
| Pitch - Mating | 0.488" (12.40mm) | - | - | 0.098" (2.50mm) | 0.488" (12.40mm) |
| Number of Positions | 2 | 2 | 2 | 16 | 2 |
| Number of Rows | 1 | 1 | 1 | 2 | 1 |
| Row Spacing - Mating | - | - | - | 0.148" (3.75mm) | - |
| Number of Positions Loaded | All | All | All | All | All |
| Style | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Board or Cable | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination | Solder | Solder | Solder | Solder | Solder |
| Fastening Type | Latch Lock | Latch Lock | Latch Lock | Detent Lock | Latch Lock |
| Contact Length - Mating | - | - | - | - | - |
| Contact Length - Post | - | - | - | 0.134" (3.40mm) | - |
| Overall Contact Length | - | - | - | - | - |
| Insulation Height | 0.705" (17.91mm) | 0.705" (17.91mm) | 0.705" (17.91mm) | 0.700" (17.78mm) | 0.705" (17.91mm) |
| Contact Shape | Rectangular | Rectangular | Rectangular | Rectangular | Rectangular |
| Contact Finish - Mating | Tin | Tin | Tin | Gold | Tin |
| Contact Finish Thickness - Mating | - | - | - | 15.0µin (0.38µm) | - |
| Contact Finish - Post | Tin | Tin | Tin | Tin | Tin |
| Contact Material | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled | Polyamide (PA66), Nylon 6/6, Glass Filled | Polyamide (PA66), Nylon 6/6, Glass Filled | Thermoplastic, Polyester, Glass Filled | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Features | Board Lock | Board Lock | Board Lock | Board Lock | Board Lock |
| Operating Temperature | -30°C ~ 105°C | -30°C ~ 105°C | -30°C ~ 105°C | -55°C ~ 105°C | -30°C ~ 105°C |
| Ingress Protection | - | - | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Insulation Color | Red | Yellow | Blue | Black | Natural |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge | Varies by Wire Gauge | 5A | Varies by Wire Gauge |
| Voltage Rating | 600VAC | 600VAC | 600VAC | 250V | 600VAC |
