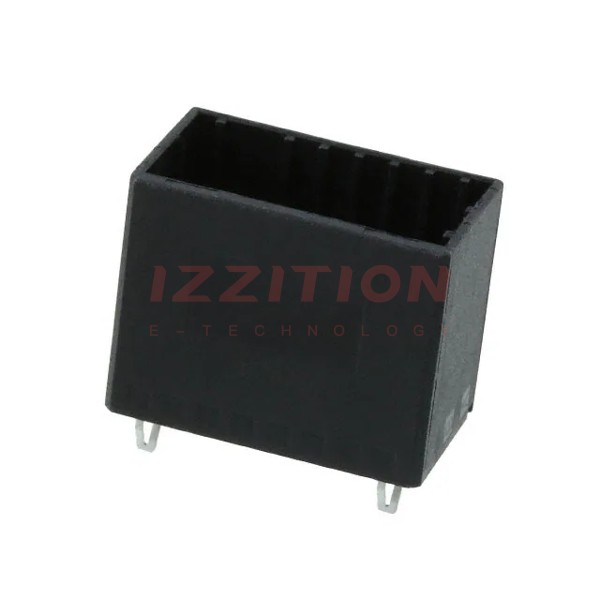

| Part Number | 1747994-2 | 1747996-2 | 1747994-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Connector Type | Header | Header | Header |
| Contact Type | Tab | Tab | Tab |
| Pitch - Mating | 0.098" (2.50mm) | 0.488" (12.40mm) | 0.098" (2.50mm) |
| Number of Positions | 16 | 2 | 16 |
| Number of Rows | 2 | 1 | 2 |
| Row Spacing - Mating | 0.148" (3.75mm) | - | 0.148" (3.75mm) |
| Number of Positions Loaded | All | All | All |
| Style | Board to Board or Cable | Board to Cable/Wire | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Termination | Solder | Solder | Solder |
| Fastening Type | Detent Lock | Latch Lock | Detent Lock |
| Contact Length - Mating | - | - | - |
| Contact Length - Post | 0.134" (3.40mm) | - | 0.134" (3.40mm) |
| Overall Contact Length | - | - | - |
| Insulation Height | 0.700" (17.78mm) | 0.705" (17.91mm) | 0.700" (17.78mm) |
| Contact Shape | Rectangular | Rectangular | Rectangular |
| Contact Finish - Mating | Gold | Tin | Gold |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) | - | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin | Tin | Tin |
| Contact Material | Copper Alloy | Copper Alloy | Copper Alloy |
| Insulation Material | Thermoplastic, Polyester, Glass Filled | Polyamide (PA66), Nylon 6/6, Glass Filled | Thermoplastic, Polyester, Glass Filled |
| Features | Board Lock | Board Lock | Board Lock |
| Operating Temperature | -55°C ~ 105°C | -30°C ~ 105°C | -55°C ~ 105°C |
| Ingress Protection | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Insulation Color | Black | Red | Black |
| Current Rating (Amps) | 5A | Varies by Wire Gauge | 5A |
| Voltage Rating | 250V | 600VAC | 250V |
