174552-1
  • Share:

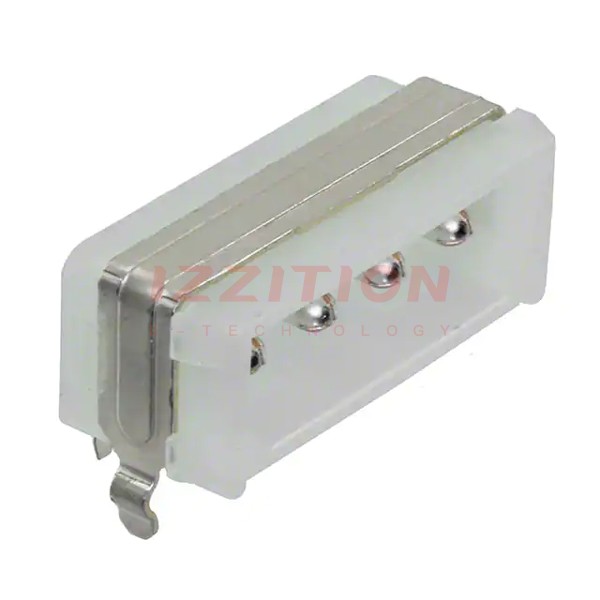

TE Connectivity AMP Connectors 174552-1

Manufacturer No:
174552-1
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
174552-1 Datasheet
ECAD Model:
-
Description:
CONN HEADER R/A 4POS 5.08MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.200" (5.08mm)
Number of Positions:4
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Locking Ramp
Contact Length - Mating:-
Contact Length - Post:0.161" (4.09mm)
Overall Contact Length:-
Insulation Height:0.346" (8.80mm)
Contact Shape:Circular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Polyamide (PA66), Nylon 6/6
Features:Board Lock
Operating Temperature:-20°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-2
Insulation Color:-
Current Rating (Amps):10A
Voltage Rating:250VAC
0 Remaining View Similar

In Stock

$2.61
20

Please send RFQ , we will respond immediately.
