TE Connectivity AMP Connectors-1744429-4 - Rectangular Connectors - Headers, Male Pins Product Specifications and Latest Quotes

Part Number	1744429-4	1744429-7	1744489-4	1744439-4	1744429-5	1744429-6	1744429-9	1744429-8	1744426-4	1744427-4	1744428-4	1744429-2	1744429-3
Manufacturer	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors
Product Status	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active
Connector Type	Header	Header	Header	Header	Header	Header	Header	Header	Header	Header	Header	Header	Header
Contact Type	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin
Pitch - Mating	0.156" (3.96mm)	0.156" (3.96mm)	0.156" (3.96mm)	0.098" (2.50mm)	0.156" (3.96mm)	0.156" (3.96mm)	0.156" (3.96mm)	0.156" (3.96mm)	0.098" (2.50mm)	0.156" (3.96mm)	0.156" (3.96mm)	0.156" (3.96mm)	0.156" (3.96mm)
Number of Positions	4	7	4	4	5	6	9	8	4	4	4	2	3
Number of Rows	1	1	1	1	1	1	1	1	1	1	1	1	1
Row Spacing - Mating	-	-	-	-	-	-	-	-	-	-	-	-	-
Number of Positions Loaded	All	All	All	All	All	All	All	All	All	All	All	All	All
Style	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire
Shrouding	Shrouded - 1 Wall	Shrouded - 1 Wall	Shrouded - 1 Wall	Shrouded - 4 Wall	Shrouded - 1 Wall	Shrouded - 1 Wall	Shrouded - 1 Wall	Shrouded - 1 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 1 Wall	Shrouded - 1 Wall	Shrouded - 1 Wall
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole, Right Angle	Through Hole	Through Hole, Right Angle	Through Hole	Through Hole
Termination	Solder	Solder	Solder	Kinked Pin, Solder	Solder	Solder	Solder	Solder	Kinked Pin, Solder	Solder	Solder	Solder	Solder
Fastening Type	Friction Lock	Friction Lock	Friction Lock	Friction Lock	Friction Lock	Friction Lock	Friction Lock	Friction Lock	Friction Lock	Friction Lock	Friction Lock	Friction Lock	Friction Lock
Contact Length - Mating	0.303" (7.70mm)	0.303" (7.70mm)	0.303" (7.70mm)	-	0.303" (7.70mm)	0.303" (7.70mm)	0.303" (7.70mm)	0.303" (7.70mm)	0.141" (3.60mm)	0.306" (7.77mm)	0.338" (8.59mm)	0.303" (7.70mm)	0.303" (7.70mm)
Contact Length - Post	0.145" (3.68mm)	0.145" (3.68mm)	0.145" (3.68mm)	0.134" (3.40mm)	0.145" (3.68mm)	0.145" (3.68mm)	0.145" (3.68mm)	0.145" (3.68mm)	0.126" (3.20mm)	0.142" (3.60mm)	0.142" (3.60mm)	0.145" (3.68mm)	0.145" (3.68mm)
Overall Contact Length	0.575" (14.60mm)	0.575" (14.60mm)	0.575" (14.60mm)	-	0.575" (14.60mm)	0.575" (14.60mm)	0.575" (14.60mm)	0.575" (14.60mm)	-	0.567" (14.40mm)	-	0.575" (14.60mm)	0.575" (14.60mm)
Insulation Height	0.127" (3.22mm)	0.127" (3.22mm)	0.127" (3.22mm)	0.346" (8.80mm)	0.127" (3.22mm)	0.127" (3.22mm)	0.127" (3.22mm)	0.127" (3.22mm)	0.299" (7.60mm)	0.472" (12.00mm)	0.339" (8.61mm)	0.127" (3.22mm)	0.127" (3.22mm)
Contact Shape	Square	Square	Square	Circular	Square	Square	Square	Square	Circular	Square	Square	Square	Square
Contact Finish - Mating	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin
Contact Finish Thickness - Mating	120.0µin (3.05µm)	120.0µin (3.05µm)	120.0µin (3.05µm)	80.0µin (2.03µm)	120.0µin (3.05µm)	120.0µin (3.05µm)	120.0µin (3.05µm)	120.0µin (3.05µm)	-	39.4µin (1.00µm)	80.0µin (2.03µm)	120.0µin (3.05µm)	120.0µin (3.05µm)
Contact Finish - Post	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin
Contact Material	Brass	Brass	Brass	Copper Alloy	Brass	Brass	Brass	Brass	Copper Alloy	Brass	Brass	Brass	Brass
Insulation Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Polyamide (PA), Nylon, Glass Filled	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Features	Board Guide, Glow Wire Compliant	Board Guide, Glow Wire Compliant	Glow Wire Compliant	Glow Wire Compliant	Board Guide, Glow Wire Compliant	Board Guide, Glow Wire Compliant	Board Guide, Glow Wire Compliant	Board Guide, Glow Wire Compliant	Board Lock	Board Guide, Glow Wire Compliant	Glow Wire Compliant	Board Guide, Glow Wire Compliant	Board Guide, Glow Wire Compliant
Operating Temperature	-25°C ~ 105°C	-25°C ~ 105°C	-25°C ~ 105°C	-55°C ~ 105°C	-25°C ~ 105°C	-25°C ~ 105°C	-25°C ~ 105°C	-25°C ~ 105°C	-55°C ~ 105°C	-25°C ~ 105°C	-25°C ~ 105°C	-25°C ~ 105°C	-25°C ~ 105°C
Ingress Protection	-	-	-	-	-	-	-	-	-	-	-	-	-
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-2	UL94 V-0	UL94 V-0	UL94 V-0
Insulation Color	Natural	Natural	Natural	Natural	Natural	Natural	Natural	Natural	White	-	-	Natural	Natural
Current Rating (Amps)	7.5A	7.5A	7.5A	4.2A	7.5A	7.5A	7.5A	7.5A	4.2A	7.5A	7.5A	7.5A	7.5A
Voltage Rating	250VAC	250VAC	250VAC	250VAC	250VAC	250VAC	250VAC	250VAC	250VAC	250VAC	250VAC	250VAC	250VAC

Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.156" (3.96mm)
Number of Positions:	4
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 1 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Friction Lock
Contact Length - Mating:	0.303" (7.70mm)
Contact Length - Post:	0.145" (3.68mm)
Overall Contact Length:	0.575" (14.60mm)
Insulation Height:	0.127" (3.22mm)
Contact Shape:	Square
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	120.0µin (3.05µm)
Contact Finish - Post:	Tin
Contact Material:	Brass
Insulation Material:	Polyamide (PA), Nylon
Features:	Board Guide, Glow Wire Compliant
Operating Temperature:	-25°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Natural
Current Rating (Amps):	7.5A
Voltage Rating:	250VAC

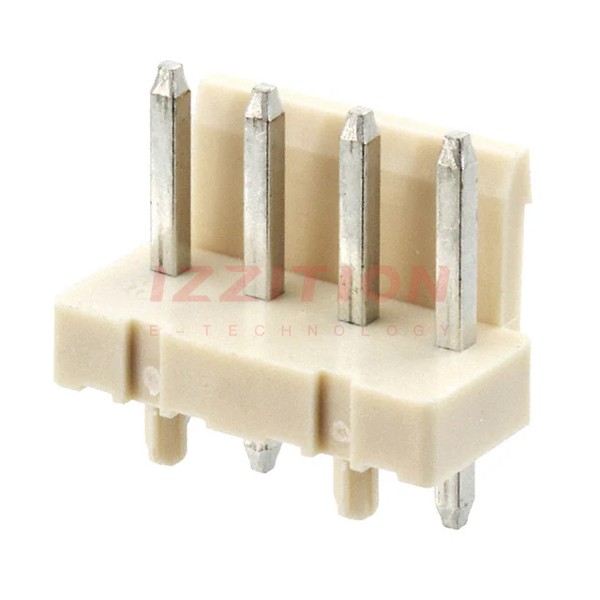

TE Connectivity AMP Connectors 1744429-4
