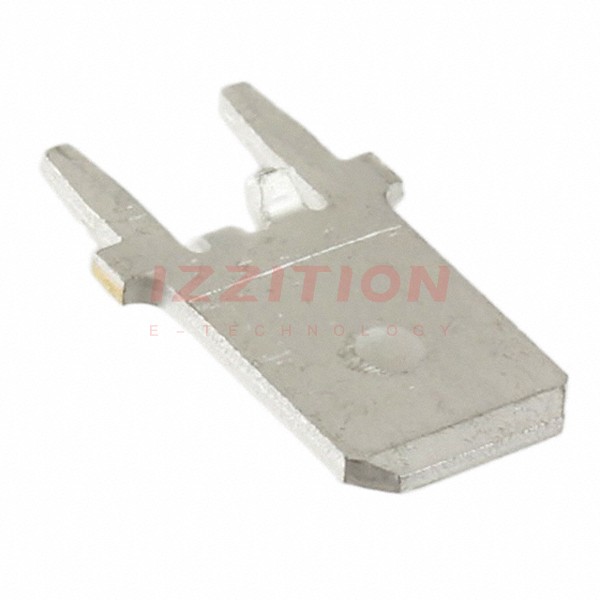

| Part Number | 1742686-1 | 1742086-1 | 1742626-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Terminal Type | Standard | Angled - 90°, Flag | Angled - 90°, Flag |
| Gender | Male | Female | Female |
| Tab Width | 0.250" (6.35mm) | 0.187" (4.75mm) | 0.250" (6.35mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.020" (0.51mm) | 0.032" (0.81mm) |
| Tab Length | - | 0.145" (3.68mm) | 0.305" (7.75mm) |
| Length - Overall | 0.552" (14.02mm) | - | - |
| Termination | Solder | Crimp | Crimp |
| Wire Gauge | - | 18-22 AWG | 14-16 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Through Hole | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle |
| Features | - | - | - |
| Color | - | - | - |
| Contact Material | Brass | Brass | Steel |
| Contact Finish | Tin | - | Nickel |
