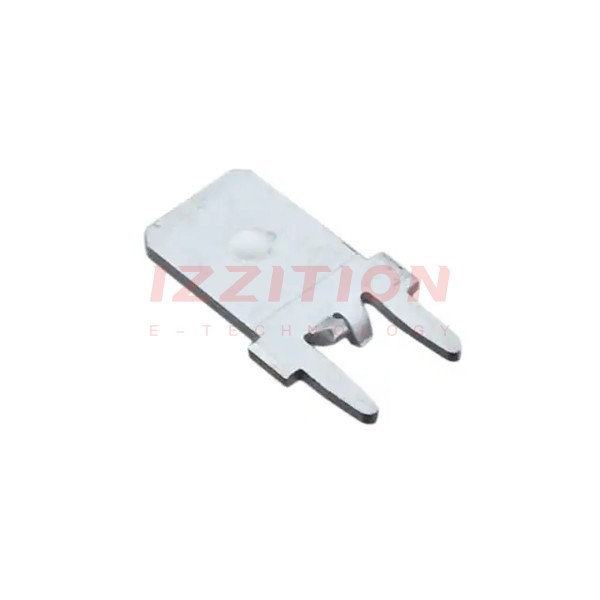

| Part Number | 1742188-1 | 1742198-1 | 1742088-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Obsolete |
| Terminal Type | Standard | Standard | Angled - 90°, Flag |
| Gender | Male | Female | Female |
| Tab Width | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.187" (4.75mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.020" (0.51mm) |
| Tab Length | 0.312" (7.92mm) | 0.305" (7.75mm) | - |
| Length - Overall | 0.552" (14.02mm) | 0.753" (19.13mm) | - |
| Termination | Solder | Crimp | Crimp |
| Wire Gauge | - | 14-18 AWG | 14-18 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Through Hole | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle |
| Features | - | - | - |
| Color | - | - | - |
| Contact Material | Brass | Steel | Brass |
| Contact Finish | Tin | Nickel | - |
