174146-2
  • Share:

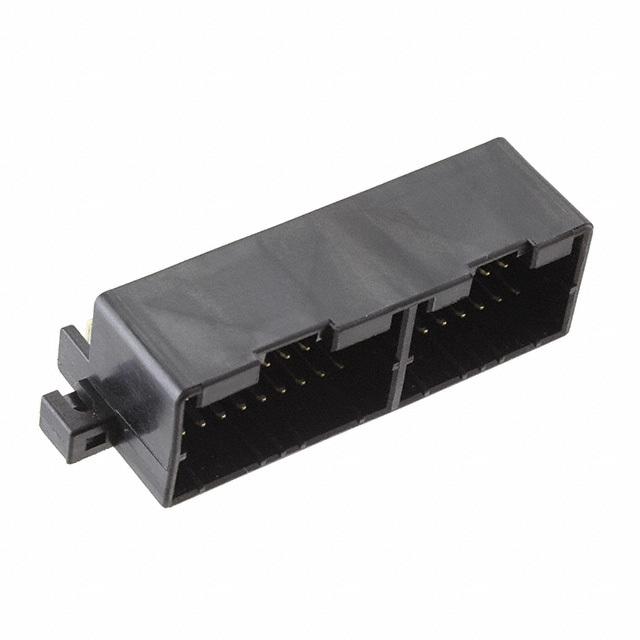

TE Connectivity AMP Connectors 174146-2

Manufacturer No:
174146-2
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tube
Datasheet:
174146-2 Datasheet
ECAD Model:
-
Description:
CONN HEADER R/A 36POS 2.5MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:-
Contact Type:Tab
Pitch - Mating:0.098" (2.50mm)
Number of Positions:36
Number of Rows:2
Row Spacing - Mating:0.205" (5.20mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Locking Ramp
Contact Length - Mating:0.276" (7.00mm)
Contact Length - Post:0.157" (4.00mm)
Overall Contact Length:-
Insulation Height:0.658" (16.71mm)
Contact Shape:Rectangular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polybutylene Terephthalate (PBT)
Features:Mounting Flange
Operating Temperature:-30°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Black
Current Rating (Amps):Varies by Wire Gauge
Voltage Rating:-
0 Remaining View Similar

In Stock

$6.10
71

Please send RFQ , we will respond immediately.
