Please send RFQ , we will respond immediately.

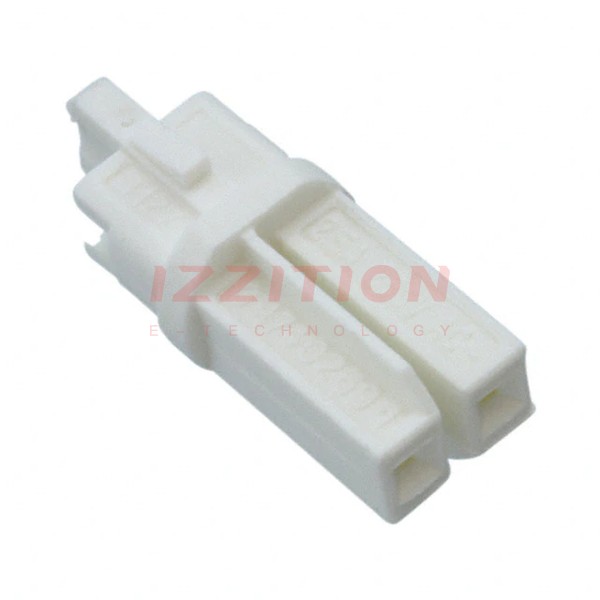

| Part Number | 1740259-1 | 1740259-2 | 1740259-5 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Style | Cable/Wire to Cable/Wire or Board | Cable/Wire to Cable/Wire or Board | Cable/Wire to Cable/Wire or Board |
| Connector Type | Plug Housing for Socket Contact | Plug Housing for Socket Contact | Plug Housing for Socket Contact |
| Number of Positions | 2 | 2 | 2 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp |
| Pitch | 0.142" (3.60mm) | 0.142" (3.60mm) | 0.142" (3.60mm) |
| Fastening Type | - | - | - |
| Features | Keying HV-1 | Keying HV-1 | Keying HV-2 |
| Housing Color | White | Black | Red |
| Wire Gauge | - | - | - |
| Contact Material | - | - | - |
| Contact Finish | - | - | - |
| Housing Material | Polyamide (PA6), Nylon 6 | Polyamide (PA6), Nylon 6 | Polyamide (PA6), Nylon 6 |
| Operating Temperature | -40°C ~ 120°C | -40°C ~ 120°C | -40°C ~ 120°C |
