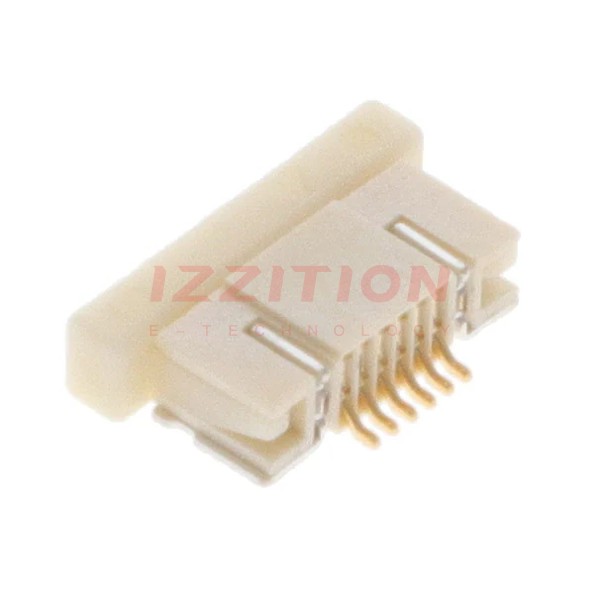

| Part Number | 1734592-6 | 1734592-8 | 1734592-9 | 1734592-5 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Flat Flex Type | FPC | FPC | FPC | FPC |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom | Contacts, Bottom | Contacts, Bottom | Contacts, Bottom |
| Number of Positions | 6 | 8 | 9 | 5 |
| Pitch | 0.020" (0.50mm) | 0.020" (0.50mm) | 0.020" (0.50mm) | 0.020" (0.50mm) |
| Termination | Solder | Solder | Solder | Solder |
| FFC, FCB Thickness | 0.30mm | 0.30mm | 0.30mm | 0.30mm |
| Height Above Board | 0.081" (2.05mm) | 0.081" (2.05mm) | 0.081" (2.05mm) | 0.081" (2.05mm) |
| Locking Feature | Slide Lock | Slide Lock | Slide Lock | Slide Lock |
| Cable End Type | Tapered | Tapered | Tapered | Tapered |
| Contact Material | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze |
| Contact Finish | Gold | Gold | Gold | Gold |
| Housing Material | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) |
| Actuator Material | Thermoplastic | Thermoplastic | Thermoplastic | Thermoplastic |
| Features | Solder Retention, Zero Insertion Force (ZIF) | Solder Retention, Zero Insertion Force (ZIF) | Solder Retention, Zero Insertion Force (ZIF) | Solder Retention, Zero Insertion Force (ZIF) |
| Voltage Rating | 250V | 250V | 250V | 250V |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
